Lumen-apposing metal stents versus double pigtail plastic stents for early (<4 weeks of illness) endoscopic transluminal drainage of pancreatic necrotic collections

Introduction

Being both safe and effective, endoscopic transluminal drainage (ETD) is the preferred minimally invasive intervention for endoscopically accessible pancreatic necrotic collections (PNC) [1]. ETD involves a staged step-up treatment approach, with initial drainage followed by endoscopic transluminal necrosectomy (ETN) if required, and can be performed using either multiple plastic stents (MPS) or lumen-apposing metal stents (LAMS) [2]. The introduction of LAMS has been considered a game changer in ETD of pancreatic necrosis, as these stents can be deployed faster and more easily, while their larger diameters allow better drainage than plastic stents, especially of solid necrotic debris, as well as easier ETN [3,4]. However, LAMS are considerably more expensive than plastic stents, and this extra cost can only be justified if it results in superior clinical outcomes.

Studies comparing metal and plastic stents for endoscopic ultrasound (EUS)-guided drainage of PNC have yielded conflicting results. A few studies and meta-analyses have reported superior clinical outcomes with LAMS compared to plastic stents, including higher clinical success rates and fewer adverse effects [5-9]. Conversely, several studies—including randomized controlled trials and meta-analyses—have shown that metal and plastic stents have comparable clinical efficacy, with metal stents only offering the advantage of achieving clinical success with fewer procedures and a shorter overall treatment duration [10-16]. Moreover, metal stents have been associated with a greater risk of formation of pseudoaneurysms and post-procedure bleeding [17].

These conflicting results could be due to the varying morphology of the PNC, as collections having more solid necrotic debris have been reported to require more aggressive drainage, including the need for ETN [18]. It is possible that LAMS may be more effective than MPS in patients with PNC that have a higher proportion of solid necrotic content. The PNC gradually liquefy with time, and collections in the early phase of illness (<4 weeks after the onset of attack of pancreatitis) have more solid content as compared to collections in the delayed phase (≥4 weeks of illness) [19-22]. Therefore, we retrospectively evaluated the safety and efficacy of ETD of PNC in the early phase (<4 weeks of illness), comparing MPS with LAMS.

Patients and methods

The endoscopic database of our unit was retrospectively searched for all patients who had undergone EUS-guided drainage/debridement of PNC between January 2018 and December 2023. We identified those treated with early (<4 weeks from the onset of acute pancreatitis) ETD, using either MPS (7 or 10 Fr) or LAMS (NAGI stent, 14 or 16 mm, Taewoong Medical Co., Ltd., Seoul, Korea; or Plumber Stent, 16 mm diameter, MI Tech Gyeonggi-Do, 17706, Korea; or Hot Axios stent, 15/20 mm diameter, Boston Scientific, Natick, MA, USA). The patients included in this retrospective analysis had been diagnosed with acute necrotising pancreatitis, based on contrast-enhanced cross-sectional imaging performed between days 3 and 7 of the onset of illness (as per the revised Atlanta classification), and had subsequently developed symptomatic PNC requiring endoscopic drainage within 4 weeks of the onset of symptoms of acute pancreatitis [23]. Patients with underlying chronic pancreatitis, prior endoscopic or radiological intervention, endoscopic intervention for gastrointestinal fistulation of PNC, severe coagulopathy or cardiorespiratory illness precluding safe endoscopic drainage were excluded. Patients with incomplete data or unclear onset dates of acute pancreatitis symptoms were also excluded from the study. The collections were drained if the patient had persistent sepsis (persistent, worsening or new-onset organ failure, fever, leukocytosis) despite intravenous antibiotics, persistent abdominal pain despite nasojejunal feeding as well as analgesics, or persistent biliary or gastric outlet obstruction. Endoscopic drainage was performed after the patient gave detailed informed consent, and the study protocol for retrospective analysis was approved by the institute’s ethics committee. The patients included were divided into 2 groups, according to whether the initial EUS-guided drainage used MPS or LAMS. Patient demographics, etiology of acute pancreatitis, size, morphology and location of PNC, technical details of the procedure, the type of stent used, outcome details and procedural complications were retrieved from the database. The choice of stents used was determined by patients’ preference, predominantly based on economic affordability. Encapsulation of PNC was evaluated on contrast-enhanced computed tomography (CT) by an experienced radiologist. Collections were considered ‘completely encapsulated’ if a well-defined wall surrounding the collection was clearly visualised. Interobserver reliability was not formally assessed, but all scans were reviewed in consensus when uncertainty existed.

EUS-guided transmural drainage of PNC

The EUS-guided transmural drainage was performed by a single endoscopist (author SSR) with the patient under conscious sedation using intravenous midazolam and pentazocine. Patients were given broad-spectrum intravenous antibiotics before the procedure and continued orally/intravenously post-procedure at the treating clinician’s discretion. The antibiotics were modified according to the culture and sensitivity reports on the drained necrotic fluid. EUS-guided drainage was performed using a linear scanning echoendoscope (EG-3870 UTK linear echoendoscope, Pentax Inc., Tokyo, Japan; or UCT180 linear echoendoscope, Olympus Optical Co. Ltd., Tokyo, Japan). Before embarking upon drainage, the morphology of the PNC was evaluated in detail, and an attempt was made to quantify the amount of solid debris evident in the form of echogenic contents, as a percentage of the total size of the collection. This quantification was an approximate visual judgment made by the endoscopist. The transmural drainage was performed under endoscopic and fluoroscopic guidance, using MPS or LAMS. Patients in the MPS group also underwent placement of an additional nasocystic drain for irrigation and aspiration. After initial drainage with either a plastic or metal stent, the patients were reassessed clinically, and with a contrast-enhanced CT of the abdomen, 3 days after the initial drainage. No further intervention was made in patients who responded clinically, along with a >50% reduction in the size of the PNC. However, patients who did not improve, or had new-onset organ failure or fever along with a <50% reduction in the size of the collection, underwent additional endoscopic procedures as described below. Patients with clinical improvement but <50% reduction in the size of PNC were followed up, and further interventions were chosen depending on the onset of new symptoms or clinical deterioration.

The nasocystic drain was removed in patients in the MPS group who responded clinically, with a reduction in the collection size by >50%, and the plastic stents were left in situ until resolution. Non-responders, as described above, underwent exchange of MPS or ETN at the treating endoscopist’s discretion. ETN was performed after the removal of MPS and the stents were replaced after the completion of necrosectomy. Additional sessions of ETN were performed, if needed, after assessment of the clinical response and imaging findings at intervals of 3 to 5 days after the ETN. Patients with LAMS underwent ETN through the stent, and hydrogen peroxide-assisted necrosectomy, in both groups, was performed at the discretion of the treating endoscopist. During ETN, the use of suction and irrigation was individualized. Patients with minimal adherent debris required only limited irrigation and suction for clearance, whereas those with extensive solid necrotic material required irrigation combined with suction for adequate debridement. Non-responders to ETN, or patients who developed complications during ETD, underwent further radiological or surgical interventions after an interdisciplinary consultation involving an interventional endoscopist, a radiologist and a pancreatic surgeon.

Results

Forty-five patients—39 (86.6%) male; age 38.5±7.8 years—underwent ETD using LAMS, whereas 21 patients—18 (85.7%) male; age 35.8±7.9 years—underwent ETD using MPS (Fig. 1). The demographic profile was comparable between the 2 groups, with alcohol being the commonest etiology in both groups (Table 1). Infection was the most common indication for drainage in both groups (84.4% and 80% in LAMS vs. MPS, respectively; P=NS). At the time of drainage, organ failure was present in 14 (31%) patients in the LAMS group vs. 7 (33.3%) patients in the MPS group. The mean size of the PNC was similar in both groups (LAMS vs. MPS: 11.6±1.9 cm and 11.8±2.3 cm; P=0.73, as was the percentage of solid necrotic content (39.1±9.9% and 38.8±10.9%, respectively; P=0.92). Completely encapsulated collections were observed in 71% of patients in the LAMS group and 76% in the MPS group, with no statistically significant difference between the groups. A majority of patients in both groups underwent trans-gastric drainage (95.5% vs. 95.2%, for LAMS and MPS, respectively). There was no significant difference between the 2 groups in the mean duration from the index attack of acute pancreatitis to the intervention (23.4±2.4 vs. 24.4±2.1 days, for LAMS and MPS, respectively).

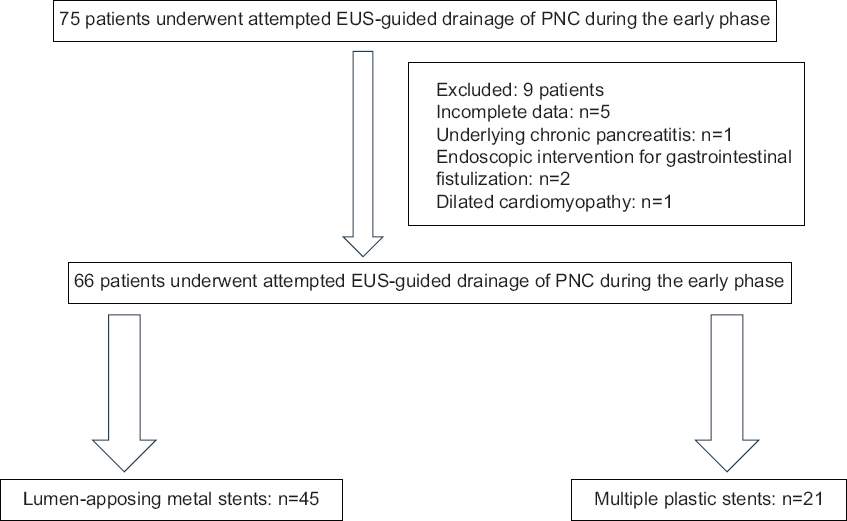

Figure 1 Study flow chart EUS, endoscopic ultrasound; PNC, pancreatic necrotic collection

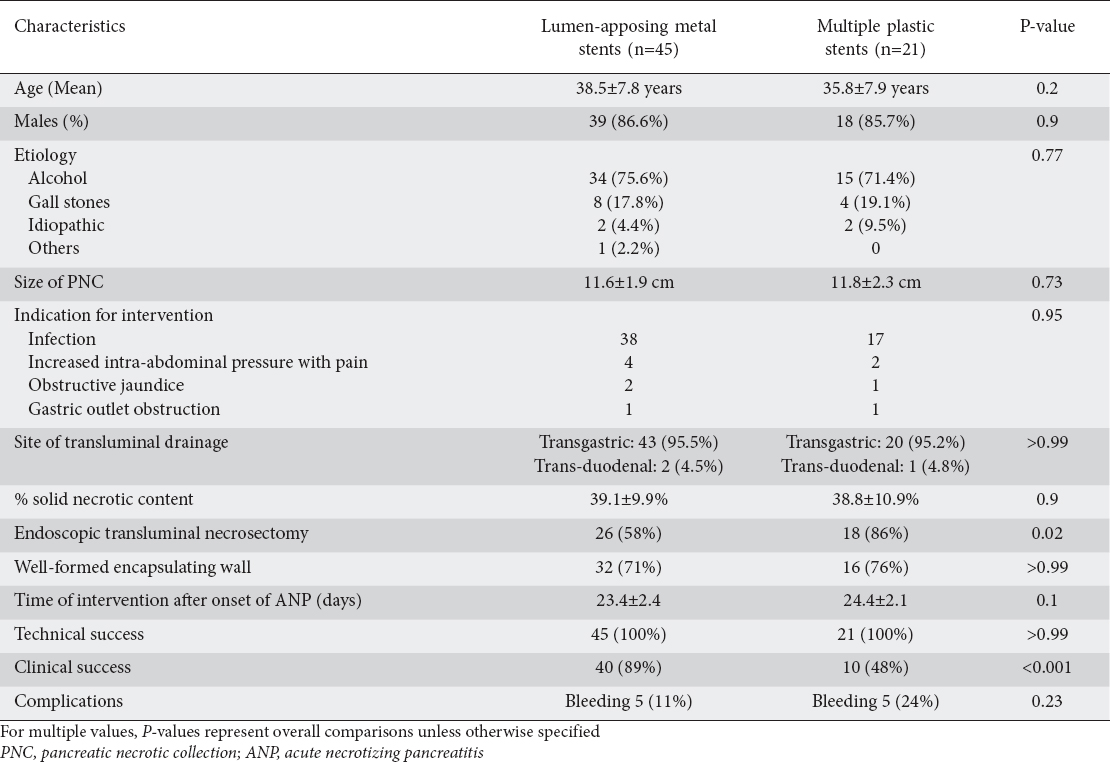

Table 1 Demographic profile and outcomes of 66 patients undergoing endoscopic transluminal drainage

The procedure was technically successful in all patients in both groups (Fig. 2,3), whereas clinical success was significantly higher in the LAMS group: 40 (89%) patients vs. 10 (48%) patients; P<0.001. All patients in the LAMS group underwent stent removal within 6 weeks of placement, as per protocol. In the LAMS group, 5 patients required rescue surgery because of bleeding accompanied by ongoing sepsis (during necrosectomy in 3 patients and post necrosectomy in 2 patients) and persistent necrotic collection, whereas 11 (52%) patients in the MPS group required rescue surgery (bleeding resulting in hemodynamic compromise in 5 patients, during necrosectomy in 4 patients and post necrosectomy in 1 patient, and ongoing sepsis with persistent necrotic collection in 6 patients). ETN was performed more frequently in the MPS group than in the LAMS group: 18 (86%) patients vs. 26 (58%) patients, respectively; P=0.02. Patients with MPS required more necrosectomy sessions to achieve a successful outcome compared to those with LAMS (6.1±1.9 vs. 4.1±1.1; P=0.009). Additional percutaneous drainage was needed more frequently in the MPS group than in the LAMS group: 10 (47.1%) vs. 6 (13%), respectively; P=0.004. Patients in the LAMS group required fewer days for resolution compared to the MPS group: mean of 22 days vs. 34 days; P<0.001. Four (19%) patients in the MPS group succumbed to their illness as compared to 3 (6%) patients in the LAMS group (P=0.19).

Figure 2 (A) An ill-defined necrotic collection (day 23 or illness). (B) EUS showing solid necrotic debris. (C) CT 3 days after transmural plastic stent placement: liquid content drained out with solid. Necrotic content remaining. (D) Endoscope taken into the cavity after dilation of the transmural tract: significant solid debris present. (E) DEN being performed EUS, endoscopic ultrasound; CT, computed tomography; DEN, direct endoscopic necrosectomy

Figure 3 (A) Computed tomography at day 19: an ill-defined pancreatic necrosis. (B) LAMS being deployed. (C) Computed tomography after metal stent placement. (D) Cap-assisted endoscopic necrosectomy LAMS, lumen-apposing metal stents

Discussion

Traditionally, intervention in PNC is deferred for at least 4 weeks to allow the collection to encapsulate and form a mature wall, as well as to enable clear demarcation between viable and necrotic tissue [25]. This delay reduces procedural risk and improves the efficacy of the intervention. However, in clinical practice, early intervention (within 4 weeks) is sometimes necessary when infected necrosis leads to clinical deterioration despite antibiotic therapy. Percutaneous drainage has traditionally been the preferred intervention for managing PNC during the early phase of illness, and is the initial intervention in the step-up management approach to pancreatic necrosis [26]. Recent advances in endoscopic techniques have enabled safe drainage of pancreatic necrosis even in the early phase, challenging historical paradigms. However, endoscopic drainage in the early phase of illness is challenging, because necrotic collections at this time are often poorly demarcated and not yet walled off, increasing the risk of procedural complications [27,28].

Endoscopic transmural drainage can be accomplished using MPS or LAMS. Bang et al reported a meta-analysis comparing the clinical outcomes of patients included in randomized trials treated using LAMS or plastic stents and concluded that, except for procedure duration, there were no significant differences in clinical outcomes for patients with walled-off necrosis (WON) treated using LAMS or plastic stents [16]. Similarly, another recent meta-analysis reported no significant differences between metal and plastic stents in terms of efficacy and safety outcomes, except that metal stents were associated with a shorter procedural duration [29]. A recent meta-analysis of 7 studies reported that metal stents are associated with shorter procedure times and better clinical success at 4 weeks, although they come at a higher cost. Despite these advantages, most clinical outcomes showed no significant differences between metal and other types of stents [30]. A recent randomized study compared MPS and LAMS in 42 patients with large (>15 cm) WON. The clinical success rates were 95.5% and 94.7%, respectively (P=0.10). The mean number of necrosectomies was 2.2 vs. 3.2 (P=0.42), with similar rates of adverse events reported between the groups [31]. The authors concluded that, for treating large WON, LAMS are not superior to MPS. The aforementioned studies have compared the efficacy of LAMS and MPS in the delayed phase of pancreatitis; however, as far as we can determine from the literature, no study has evaluated the efficacy of these 2 types of stents in the early phase of the illness (<4 weeks after the onset of acute pancreatitis).

Our study demonstrates that LAMS are safer and more efficacious than MPS for endoscopic transluminal drainage of PNC in the early phase of illness. Patients treated with LAMS showed significantly higher clinical success rates, faster resolution of collections, and less need for both endoscopic necrosectomy and rescue surgery. Moreover, LAMS placement was associated with fewer complications and lower mortality. These findings are probably due to the characteristics of PNC in the early phase of necrotising pancreatitis. Early-phase collections typically contain a higher proportion of solid necrotic debris compared to those encountered in the delayed phase of illness [21]. This increased necrotic burden can hinder effective drainage, posing a challenge when using smaller-caliber plastic stents. The larger diameter of LAMS facilitates better drainage of thick, solid debris, and also allows easy endoscopic access for necrosectomy when necessary, which may explain the superior clinical outcomes observed. The need for rescue surgery was substantially lower in the LAMS group, reflecting better drainage of necrosis and control of infection. Moreover, ETN was performed less frequently, and fewer sessions were required in the LAMS group, indicating more efficient clearance of necrotic tissue. In addition, mortality was lower in the LAMS group (6% vs. 19%)—though this difference did not reach statistical significance, probably because of the small sample size.

Recent prospective data from other studies have further refined our understanding of early intervention strategies and risk stratification in this patient population. Vanella et al validated the Quadrant-Necrosis-Infection (QNI) score, showing that necrosis ≥60% and a high QNI independently predict the need for step-up therapy following EUS-guided drainage [32]. Similarly, the DESTIN Trial, by Bang et al, demonstrated that upfront necrosectomy in infected necrotizing pancreatitis resulted in fewer re-interventions (median 1 vs. 2; P≈0.0027) without any greater mortality, supporting a proactive endoscopic approach in high-risk patients. In the context of our early-phase LAMS strategy, these findings highlight the potential benefit of timely intervention in patients with substantial necrotic burden. While our study did not employ formal scoring systems, the outcomes suggest that early LAMS placement can be safely and effectively used to manage high-risk patients, potentially reducing the need for additional procedures. Future studies incorporating standardised necrosis assessment tools, such as the QNI score, may help optimise patient selection and refine intervention timings.

Our LAMS cohort experienced fewer bleeding events compared to plastic stents. A previous study comparing these 2 stents reported a greater risk of pseudoaneurysm bleeding with LAMS [17]. This discrepancy may reflect differences in patient selection, timing of intervention and stent management protocols. Regardless, these findings underscore the importance of vigilant monitoring for vascular complications following LAMS placement. Moreover, while LAMS offers technical advantages, including ease of deployment and a potential reduction in procedural interventions, its higher cost and limited availability may limit its widespread use in low-resource settings. In contrast, plastic stents are more affordable and widely accessible, although they may require more frequent interventions and longer procedural times. Consideration of both clinical efficacy and resource constraints is therefore important when selecting the most appropriate drainage strategy.

Despite the promising findings, this study has several limitations. First, the sample size was relatively small, particularly in the MPS group, which may have limited the power to detect differences in less frequent outcomes, such as mortality. Second, this was a single-center, non-randomized study, which introduces potential selection bias and limits the generalizability of the results. A major limitation of this study is the non-random allocation of stent type, which was influenced by patient preference and ability to pay. Socioeconomic factors and other unmeasured confounders may have affected outcomes, including rates of rescue surgery and clinical success. While baseline severity indicators were generally similar between groups, while subsequent treatment strategies were guided by clinical needs rather than by economic status, these factors may partially explain the observed differences and should be considered when interpreting the apparent superiority of LAMS in early drainage. In addition, all the endoscopic procedures were performed by skilled endoscopists at a tertiary-level academic center, so the results may not be generalizable to all centers. Another potential limitation of our study is the variation in techniques between the 2 groups, as nasocystic drains were used exclusively in the MPS group. These differences could have influenced clinical outcomes, and should be considered when interpreting the results. Moreover, due to the retrospective design and relatively small sample size, logistic regression analyses could not be performed reliably. Therefore, potential confounding factors could not be fully adjusted and, consequently, the observed differences in outcomes between LAMS and plastic stents may overestimate the true benefit of LAMS. Future studies employing risk-adjusted analyses are warranted to validate these findings. Finally, the use of different stent sizes and manufacturers within each group is also an important limitation. Although all stents were considered appropriate for the clinical indications, this heterogeneity may have introduced variability in procedural outcomes and complication rates.

In conclusion, LAMS appears to be superior to MPS for ETD of symptomatic PNC in the early phase of illness (<4 weeks after the onset of pancreatitis). However, despite the promising results, the risk of complications such as bleeding remains, necessitating careful patient selection and close monitoring. Larger, multicenter randomized trials with longer follow up are warranted to confirm these findings and to evaluate the cost-effectiveness and long-term outcomes of these 2 approaches in the early phase of illness.
