Recent advances in the surgical management of hepatocellular carcinoma

Surgical management of HCC in intermediate and advanced stage

The staging of HCC is complex: it includes assessment of liver function, tumor extent, presence of metastases and the patient’s general condition, as the surgical management requires major operations (hepatectomy or liver transplantation [LT]). The Barcelona Clinic Liver Cancer (BCLC) staging system is the most commonly accepted system for prognosis and study comparisons. However, it is questioned in the western world by the hepatobiliary surgical community, regarding treatment allocation, and is not used in Asia [8]. The main questions arise in the intermediate and advanced stages with vascular involvement, where the BCLC system proposes only conservative treatments.

Transarterial chemoembolization (TACE) with lipiodol is the standard of care for patients with intermediated stage HCC (>2 lesions, >3 cm each) according to the BCLC criteria [9,10]. Two randomized controlled trials have shown a median survival of 18-27 months [11,12]. The use of drug-eluting microspheres has facilitated the more controlled release of chemotherapeutic agents and is associated with fewer systemic side effects. In a recent single-center prospective phase II clinical trial the patients with intermediate stage HCC (BCLC B) had an overall survival of 26 months, while the 3- and 5-year survival rates were 36% and 2.7% respectively [13].

The proposal of TACE, as the only management option for the intermediate stage, in the BCLC algorithm has been questioned heavily by the international hepatobiliary surgical community. An observational multicenter study that included patients from Europe, USA and Asia showed that 36% of patients who undergo liver resection for HCC were classified as BCLC B and a 5-year overall survival rate of 57% was achieved [14]. However, at that point single HCCs >5 cm were classified as BCLC B. To overcome this problem, our group conducted a systematic review, looking at the role of liver resection in the management of multinodular intermediate stage HCCs (>2, >3 cm each). Twenty-three studies were selected that included 2412 patients with multinodular HCCs (Table 1). The majority of the studies were from east Asia. The median postoperative morbidity was 25% and the 90-day mortality was 2.7%. The median follow up was 27.6 months, median survival was 37 months, and 5-year survival 35% [15]. There were significant differences in outcomes related with the number of lesions. Hepatectomy for up to 3 HCCs provided median survival of 47 months and 5-year overall survival of 49%. On the other hand, for >3 HCCs the median survival was 18 months and the 5-year overall survival 23%. Recently, the Pan-Asian-adapted European Society for Medical Oncology (ESMO) clinical practice guidelines for the management of patients with intermediate and advanced/relapsed HCC have included liver resection as a reliable option for multinodular HCC [8].

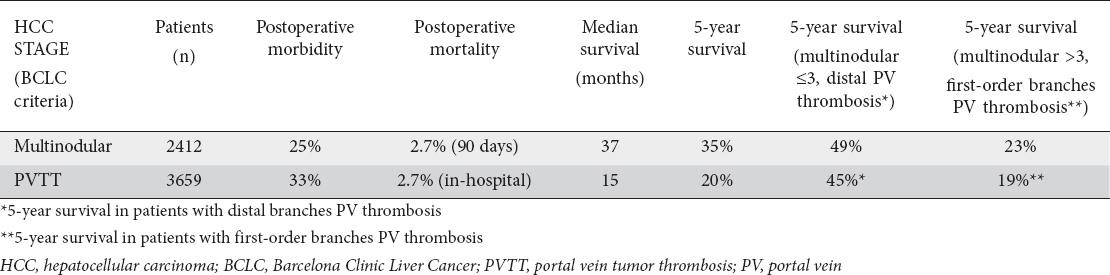

Table 1 Main data from a systematic review on the role of liver resection in the management of intermediate and advanced stage HCC [15]

Advanced stage (C), according to the BCLC staging system, is a very heterogenous group of patients, including HCCs with portal vein (PV) invasion and or extrahepatic spread (metastases). The liver function is preserved (Child-Pugh B) and the performance status is good [10]. For this group of patients, systemic targeted therapy is the standard of care, according to BCLC criteria, with a life expectancy of ≥10 months. Sorafenib, a multikinase inhibitor that targets vascular endothelial growth factor receptor, platelet-derived growth factor receptors, and RAF kinases signaling, is the standard of care [8,10]. Regorafenib is the standard of care, as second-line treatment, for patients with advanced HCC who have tolerated sorafenib but progressed. It is recommended in patients with well-preserved liver function and Eastern Cooperative Oncology Group performance status 0-1 [16]. Regorafenib improved overall survival vs. placebo (10.6 vs. 7.8 months) [16]. The results in the advanced stage are not satisfactory and new treatments are required. For this reason, intensive research is being undertaken; new agents such as cabozantinib, ramucirumab and immunotherapy with nivolumab are being tested with varying results [8].

The main question is whether surgical treatment has a role in the advanced stage. It seems that it could have a role in patients with limited macrovascular invasion of the PV. The advanced stage is a very heterogeneous stage, including patients with limited macrovascular invasion, extended vascular invasion and extrahepatic metastases. An observational multicenter study with patients from Europe, USA and Asia showed that 14% of patients who undergo liver resection for HCC were classified as BCLC C, and a 5-year overall survival of 38% was achieved [14]. There are different types of PV tumor thrombosis (PVTT), which also affect the extent of PVTT. There are 2 main classification systems, one of them proposed by the liver cancer study group of Japan [17]. According to this, tumor thrombus in distal and second order PV branches is classified as Vp1 and Vp2, respectively. The presence of tumor thrombus in the main right or left PV is classified as Vp3. In the main PV trunk, contralateral or both it is classified as Vp4 (Fig. 1). The second classification comes from China [18]. According to this classification, type 1 refers to tumor thrombus in segmental branches of the PV, and type II refers to the presence of thrombus in the right or left PV. In type III, tumor thrombus involves the main PV trunk and in type IV thrombus extends to the superior mesenteric vein.

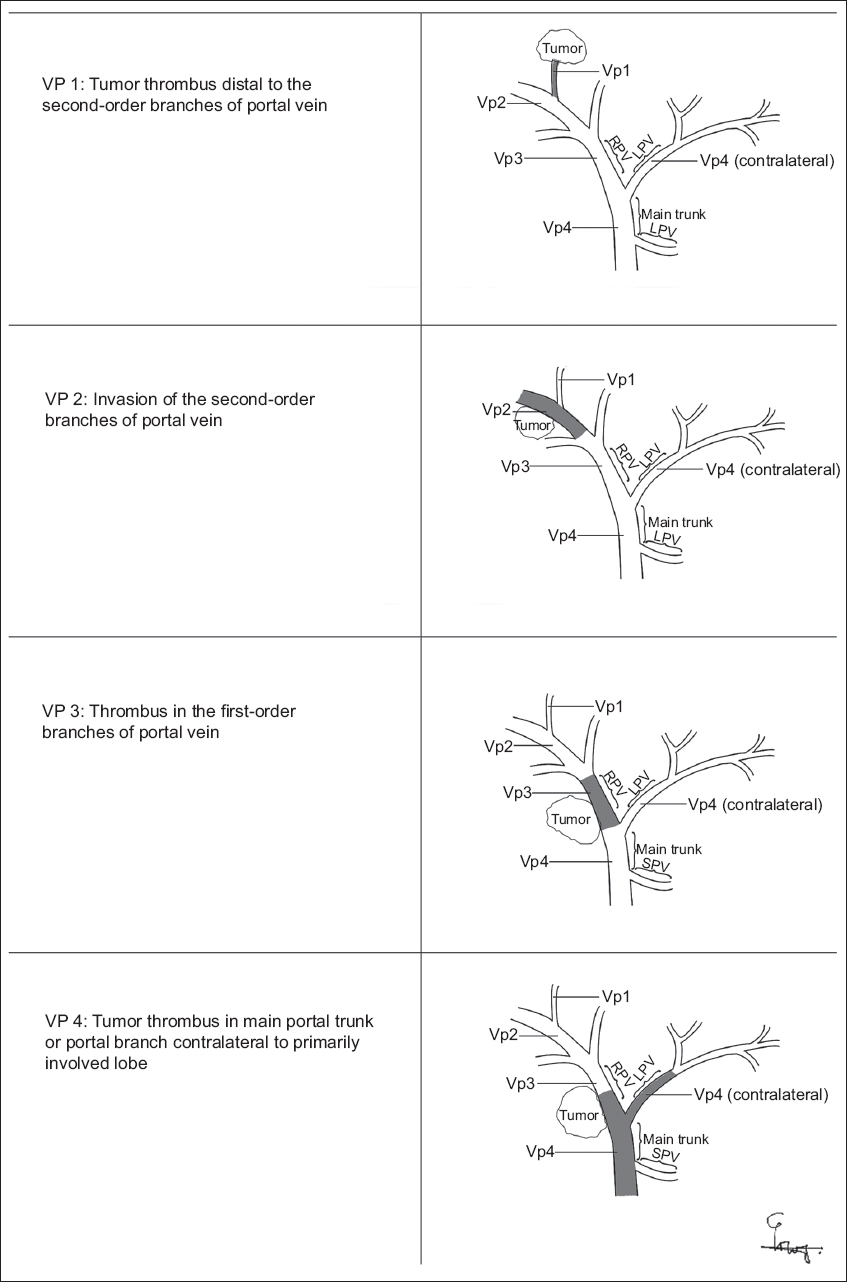

Figure 1 Portal vein tumor thrombosis classification according to the liver study group of Japan HCC, hepatocellular carcinoma; HBV, hepatitis B; HCV, hepatitis C; NAFLD, nonalcoholic fatty liver disease; MILR, minimally invasive liver surgery; LDLT, living donor liver transplantation; LT, liver transplantation; BCLC, Barcelona Clinic Liver Cancer; TACE, transarterial chemoembolization; PV, portal vein; LLR, laparoscopic liver resection; MC, Milan criteria; UCSF criteria, the University of California, San Francisco criteria; MELD, model for end-stage liver disease; DDLT, deceased donor liver transplantation; SFSS, small-for-size syndrome; AFP, α-fetoprotein; AASLD, American Association for the Study of Liver Diseases; EASL, European Association for the Study of the Liver

In our systematic review mentioned above, we also looked at the role of liver resection in the management of advanced stage HCC [15]. Twenty-nine studies were selected that included 3659 patients who had HCC with macrovascular invasion (vTable 1). The median postoperative morbidity was 33% and the in-hospital mortality 2.7%. The median follow up was 25 months and the median survival 15 months. The 3- and 5-year survival rates were 33% and 20%, respectively. Twelve studies reported separate survival data according to the stage of PVTT. The median 5-year survival for Vp1-2 patients was 45%. The median 5-year survival was 19% for Vp3 PVTT and 14.5% for Vp4 PVTT patients. Only 4 studies originated from the West.

It seems that the favorable results reported by both eastern and western hepato-pancreato-biliary centers support the role of liver resection in patients with PVTT of the first (Vp1) and secondary (Vp2) branches. A revision of western countries’ guidelines is required to fully recognize hepatic resection as a valid alternative for selected cases of advanced HCC [19]. Recently, the Pan-Asian adapted ESMO clinical practice guidelines for the management of patients with intermediate and advanced/relapsed HCC have included liver resection as an option for advanced stage HCC with intrahepatic macrovascular invasion without extrahepatic metastases [8]. Furthermore, a recent study from Japan showed that hepatic resection in patients with HCC and portal hypertension offers overall survival of 50%, and the perioperative prophylactic management of portal hypertension increases the safety of the procedure, with low postoperative morbidity and mortality [20]. Also, as the treatment of HCC is complex and there are different management options for each stage, recent evidence suggests that discussion of HCC cases in a multidisciplinary tumor board should be mandatory, in order to reach the best therapeutic decision [21,22].

MILR in HCC (laparoscopic and robotic surgery)

MILR is increasing globally; its wide acceptance has occurred in parallel with the increasing trend to perform limited resections for malignant lesions. Reich performed the first laparoscopic liver resection (LLR) for benign lesion in the early 1990s [23]. In highly specialized hepatobiliary centers, the percentage of MILR performed every year has increased by up to 50% over the last 2 decades, mainly for malignant lesions. In 2008 the Louisville Statement [24] introduced the indication of MILR for solitary lesions of 5 cm or less, located in liver segments II, III IVb, V, VI and requiring segmental resections or left lateral hepatectomy. The panel of experts suggested that major liver resections should be reserved for experienced surgeons in liver surgery and advanced laparoscopic surgery in specialized centers. The second international consensus conference held in Marioka in 2014 stressed the need for a formal educational structure for those interested in performing major LLR, because of the steep learning curve [25]. The third international meeting was held in Seoul, Korea, in 2016, with special focus on the role of laparoscopic liver donor hepatectomy. It was concluded that laparoscopic donor hepatectomy is increasing in both pediatric and adult LDLT. It was emphasized that for major donor hepatectomy more evidence is needed [26].

LLR is one of the most significant achievements in the field of liver surgery. For patients with resectable HCC in particular, LLR has several advantages over the open approach, as HCC usually develops on a liver with underlying disease. The main advantages are the lower incidence of postoperative liver failure and ascites, as the abdominal trauma is much smaller and the surgical stress significantly less [27]. A recent systematic review and meta-analysis compared the short- and long-term outcomes of laparoscopic and open liver resections for HCC. It concluded that LLR for HCC is feasible and offers better short-term outcomes in respect of complication rate, blood loss and duration of hospital stay, and comparable long-term outcomes to the open approach [28]. Similar conclusions have been reached in another recent systematic review [29] and meta-analysis [30].

For suitable HCC patients selected for LLR, 3 important factors must be taken into account: the presence of cirrhosis, the location of the mass, and the size of the mass. Several studies have shown the feasibility of LLR for HCC in cirrhotic patients, which could also reduce complications and shorten hospital stay [31,32]. All these data support the message that LLR may be a viable alternative to an open procedure in patients with liver cirrhosis. As regards the location of the tumor, Zheng et al [33] presented 281 patients who underwent LLR for lesions located in posterior liver segments (I, IVa, VII, and VIII). Blood loss, complication rate, hospital stay and tumor recurrence were not significantly different in comparison to LLRs in anterolateral segments (II, III, IVb, V and VI), although the operation time was longer and the conversion rate higher. In experienced centers, the tumor location may not be a contraindication for the laparoscopic approach. It is well known that tumor size is a risk factor in both laparoscopic and open liver tumor resection. Retrospective studies that compared patients who underwent LLR for HCCs of ≥5 and <5 cm [34] indicated that the operation time, conversion rate, blood loss, postoperative hospital stay, the disease-free survival, and the length of overall survival were comparable between the 2 groups. A recent study showed that laparoscopic left lateral segmentectomy for large HCCs (>5 cm) had better perioperative outcomes and equivalent oncologic outcomes compared to open resection [35]. A recent report from the international survey on the technical aspects of 4478 difficult LLRs (major hepatectomy, postero-superior segmentectomy, sectionectomy, living donor hepatectomy, tumor size >10 cm, Child-Pugh B, combined with biliary reconstruction) concluded that most procedures are safe and feasible when conducted in specialized centers [36]. As mentioned above, LLR is advantageous in reducing blood loss and transfusion rate. An appropriate balance between CO₂ pressure_, pneumoperitoneum and central venous pressure is essential to decrease bleeding and maintain stable hemodynamics.

Another application of MILR is laparoscopic ablation therapies for HCC lesions not eligible for a percutaneous approach (e.g., location in posterior segments) or surgical resection (affected general condition or liver function). Recent evidence suggests that laparoscopic ablation of liver lesions is safe and effective [37]. Furthermore, as tumor recurrence is very common after liver resection for HCC in chronic liver disease, the application of laparoscopic repeat liver resection after open or laparoscopic liver hepatectomy is safe and can be performed with favorable short-term outcomes in highly selected cases [38,39]. However, LLR remains a technically demanding procedure that requires surgical technology (CUSA, Ligasure device, harmonic scalpel, 3D high-definition camera) and an experienced surgical team. It seems that the use of new techniques, such as indocyanine green fluorescence imaging, will facilitate the safe performance of anatomic liver resections laparoscopically [40]. In conclusion, thanks to the efforts of both liver surgeons and medical engineers over the last 2 decades, LLR has become a technically feasible and reliable treatment for liver disease. A learning curve of 60 cases is required in order for surgeons to be able to perform high-quality LLR procedures.

On the other hand, the introduction of robotic surgery might fill the gaps of conventional laparoscopy. It was initially reported for liver operations in 2010 [41]. Robotic surgical systems allow easier access to deep intraparenchymal and postero-superior liver areas. At the same time, robotic surgery is characterized by flexibility, enabling curved parenchymal transection, which can only be reached with difficulty with the conventional straight laparoscopic instrument and camera system [42]. Therefore, lesions in the postero-superior segments of the liver, as well as those with major vascular involvement, could be more easily approached in robotic surgery. Robotic surgery facilitates a parenchymal-sparing liver resection, while at the same time it ensures less surgeon fatigue, especially in long procedures [43]. Although several studies have been published regarding robotic liver resection, showing its safety and feasibility, the comparison with open and conventional laparoscopic techniques is still in its infancy. It seems that robotic liver resection maintains the typical benefits of minimally invasive surgery, including shorter operative times, lower blood loss, and shorter hospital stays compared to open surgery, but its superiority over laparoscopy has not yet been proved [44-46]. The robotic technique has a shorter learning curve compared to laparoscopic hepatectomy [47]. On the other hand, robotic surgery has a much higher cost in comparison with LLR, without consistently evident superiority in terms of clinical benefit [47,48]. Furthermore, at present, robotic sources of energy (ultrasound, bipolar electrocautery) are inferior compared to those used in laparoscopy. In conclusion, the most significant clinical benefit of the robotic system over conventional laparoscopy is presumably the performance of minor resections in liver lesions in difficult locations (postero-superior segments). Also, the endo-wristed instruments make the robotic system appropriate for parenchymal-sparing resection, and during hilar dissection they allow parenchymal preservation, even for tumors close to a hepatic vein and portal pedicles [47]. Table 2 presents the main data from large studies from East and West relating to LLRs in patients with HCC [49-55].

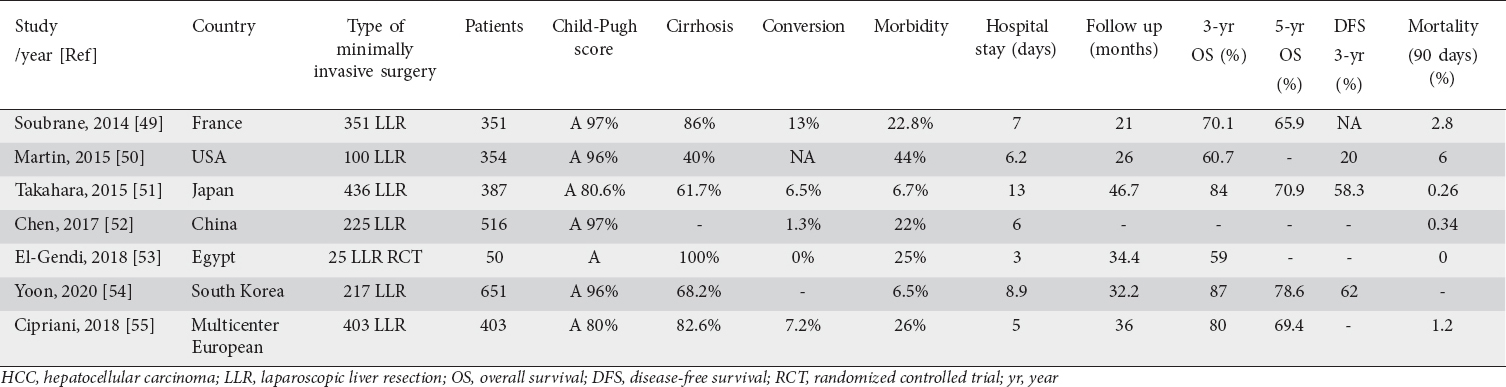

Table 2 Large studies from East and West with laparoscopic liver resections in patients with HCC

LDLT

HCC is the most common tumor to be treated with whole organ transplantation, and it is listed as the primary indication in approximately 20% of LT worldwide [56,57]. The results of LT for HCC have improved drastically in the last 20 years, mainly because of better patient selection, and currently the recurrence rate ranges from 11-18% and the 5-year survival rate is more than 70% [58]. Since the introduction of the Milan criteria (MC) by Mazzaferro et al in 1996 (single tumor <5 cm or up to 3 tumors, none of them larger than 3 cm, no macrovascular invasion) the number of patients transplanted for HCC has seen significant growth, with long-term results comparable to those of non-HCC patients [59,60]. Moreover, many centers are making efforts to expand these selection criteria and have developed modified or extended guidelines in order to improve patient evaluation—the University of California, San Francisco (UCSF) criteria; Up-to-seven, Toronto; Hangzhou or Chengdu criteria in mainland China, etc.—in an effort to achieve satisfactory long-term survival after LT among those patients [61].

The indication for LT for HCC in terms of liver functional reserve, especially in western countries, is based on the model for end-stage liver disease (MELD) score, with additional points for those patients. Until now, LT has been offered to patients with HCC within the MC and preserved liver function [10]. However, there is a lack of potential donors for deceased donor LT (DDLT). A long waiting period is problematic for HCC patients [62]. The latest data indicate that many patients with HCC have a very low probability of receiving DDLT before tumor progression, because most deceased donor livers are allocated to patients with a high MELD score (>30). The current waitlist dropout rate in Europe ranges between 15% and 35% [63]. These findings suggest that DDLT is not a feasible treatment modality for the majority of HCC patients. To overcome long waiting lists, disease progression and the dropout rate for LT, many centers tend to use “bridging” non-transplant therapies (e.g., liver resection, radiofrequency ablation, TACE) if the median waiting time for LT is more than 6 months [64-66]. These locoregional treatments may also play a critical role in successful down-staging in patients with HCC initially beyond the MC (i.e., macrovascular invasion) [64]. As the shortage of donors compared with the number of patients in need of transplantation is a serious and persistent problem worldwide, LDLT is emerging as an additional therapeutic option. Historically, the first report of successful LDLT was by Raia at the University of Sao Paulo in July 1989 [67]. LDLT as a treatment for HCC is especially popular in most Asian countries, given the difficulties in organ procurement from deceased donors [68]. LDLT is currently the only innovation that significantly expands the limited donor pool, as the growing demand for organs is not met by the available deceased liver grafts. HCC comprises over one third of the indications for LT in Asia, as compared with 10-20% in Europe and the USA [69]. Even in Western countries, the necessity for LDLT is well established, in particular for more advanced HCC patients, who are disadvantaged by current allocation algorithms for grafts from deceased donors [70].

The application of LDLT has several advantages: 1) the transplantation can be performed on an elective basis before serious decompensation of the recipient or tumor growth. Waiting time can be very short in specialized centers, where LDLT is performed within a median of 44 days [71]. Therefore, LDLT for patients with HCC is a good option, minimizing the risk of dropout; 2) grafts are in excellent condition and complications due to preservation injury are absent; and 3) LDLT with relative donors has the potential to provide immunological benefits and thus reduce rejection episodes because of genetic similarities between the donor and the recipient. As a result, LDLT, which provides an excellent alternative for patients waiting for DDLT, has increased dramatically, especially in eastern countries [72].

However, LDLT presents with potential risks for post-transplant HCC recurrence that could impair recurrence-free survival, mainly for patients who do not fulfil the MC [73,74]. It is unclear whether this difference is due to a specific biological effect unique to the LDLT procedure, or to other factors such as patient selection. Firstly, the growth factors that mediate the regeneration of the liver graft after LDLT may potentiate HCC recurrence. The relatively small size of LDLT grafts may lead to additional mechanical injury at the start of the reperfusion process, and angiogenesis and cell division signaling pathways may be initiated more frequently. This rapid graft regeneration in LDLT has been implicated in a potential acceleration of tumor growth. Furthermore, an aggressive or rapidly progressive HCC biology may not be recognized during the short waiting time for transplantation. Because of the increased technical complexity of the LD allograft, LD recipients also have higher complication rates in comparison to diseased LT [75]. These postoperative complications following LDLT include bleeding, hepatic artery thrombosis, higher rates of biliary complications (biloma, cholangitis, etc.) and late biliary strictures. Moreover, another common factor limiting LDLT is represented by small-for-size syndrome (SFSS). SFSS can be defined [76] as functional liver impairment during the first postoperative period, as evidenced by coagulopathy, cholestasis, encephalopathy and ascites, and can lead to catastrophic consequences and increase mortality. Finally, the ethical dilemma of performing hepatectomy in a healthy donor with the potential for poor outcomes in the LDLT recipient is an existing drawback of this procedure (median rate for donor morbidity 16.1%, mainly postoperative biliary complications, less than 0.6% mortality) [77]. Over the last decade, a few large multicenter studies and meta-analyses have provided a sufficient description of how methods and baseline characteristics are related to overall patient survival and recurrence rates in both LDLT and DDLT patients. Closely matched patients who underwent LDLT or DDLT for HCC have demonstrated equivalent outcomes, and it can be concluded that there were no disadvantages with LDLT compared to DDLT regarding overall and recurrence-free survival. In this review we quote some of the largest (more than 45 participants who received LDL graft) and latest comparative studies between LDLT and DDLT for patients with HCC, 4 from western centers and 6 from Asia, summarized in Table 3 [73,78-86]. Most of them report comparable results between LDLT and DDLT. However, the results of the A2ALL cohort study [73] found a higher rate of recurrence within 5 years in LDLT compared to DDLT (38% vs. 11%, P=0.0004), but there was a clear tendency toward more aggressive tumor characteristics in the LDLT group.

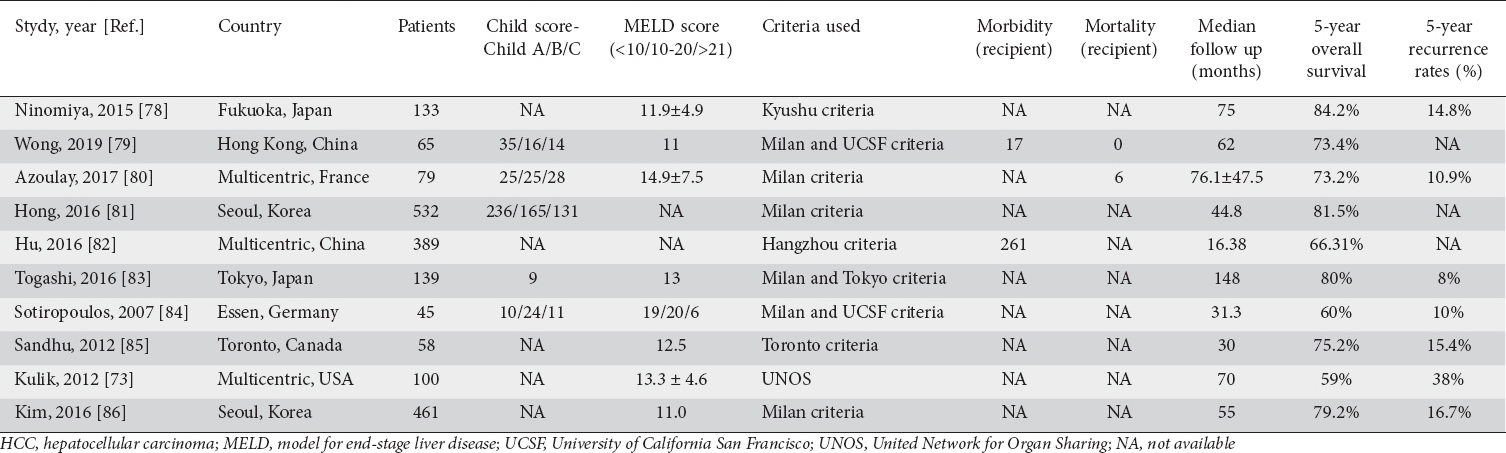

Table 3 Large studies from East and West in patients with HCC managed with living donor liver transplantation

The waiting list for transplantation with a deceased donor’s liver graft seems to jeopardize recipients with potentially curable HCCs, given the constant risk of cancer progression beyond accepted staging criteria. LDLT diminishes not only waiting list mortality but also dropout rates due to tumor progression beyond the established criteria for DDLT, which are usually very restrictive [87]. Moreover, improvements in patient selection and novel techniques for the endoscopic management of biliary complications post-LDLT (especially biliary anastomotic strictures) will ensure the success rate of LDLT in terms of survival. Furthermore, allograft selection, potential use of inflow modification, and optimization of outflow are all strategies that should be used to decrease the incidence of SFSS. Finally, studies from many Asian centers demonstrate that, with the incorporation of biological markers in the selection criteria to eliminate biologically aggressive HCCs, LDLT may have a significantly improved overall and disease-free survival for HCC patients [88].

In conclusion, LDLT could be a beneficial management strategy in HCC treatment. New RCTs are required to reevaluate preoperative screening, postoperative surveillance, and downstaging protocols in HCC patients receiving LDLT, to ensure optimal and timely therapy. Lastly, therapeutic options for patients with advanced HCC before LDLT need to be further expanded to improve survival.

Molecular markers in HCC

HCC is characterized by considerable phenotypic and molecular heterogeneity. During the last 2 decades, there has been an increasing understanding of the abundant molecular alterations in HCC; however, this has not been translated into prognostic assessment or therapeutic decision making [10]. Knowledge of the cellular composition of tumors and the corresponding tumor microenvironment will enable the development of prognostic and predictive biomarkers that can be utilized in routine clinical practice [89]. Biomarkers represent an easy and noninvasive way to detect HCC at early stages and have the potential to estimate disease prognosis and recurrence. In spite of the numerous efforts to find molecules as possible biomarkers, there is not a single ideal marker in HCC.

Alpha-fetoprotein (AFP) is a serum glycoprotein first recognized as a marker for HCC more than 40 years ago and has since been used for early HCC detection. However, normal AFP levels are present in 30% of HCC patients at the time of diagnosis and usually remain low, even with advanced HCC [90]. AFP >400 ng/mL is considered diagnostic for HCC, although less than half of the patients may have such high levels. With values of that magnitude, the specificity of AFP for HCC is close to 100%, but the sensitivity falls below 45% [90,91]. For this reason, it is imperative to find other, more sensitive molecular markers for the diagnosis and early identification of recurrence of HCC. Towards this direction new molecules have been investigated.

More specifically, autophagy molecules seem to have a key role in HCC. Autophagy is an evolutionarily conserved lysosome-dependent catabolic process that degrades cells components in order to recycle substrates to exert optimally and adapt to tough circumstances. It is a critical cellular homeostatic mechanism with stress resistance, immunity, antiaging, and anti-tumor effects [92]. Basal autophagy acts as a tumor suppressor by maintaining genomic stability in normal cells. However, once a tumor is established, unbalanced autophagy will contribute to carcinoma cell survival in the tumor microenvironment and in turn promote tumor growth and development.

Beclin-1, LC3-II and p62 are autophagy genes that can be used as prognostic molecules for HCC [93]. According to multicenter studies, increased autophagy has been detected in advanced liver cancer and is closely related to malignant transformation and a low survival rate in HCC patients. Moreover, autophagy contributes to the chemoresistance of HCC cells [94,95]. Fig. 2 depicts the role of autophagy in HCC and the implementations it may have in the diagnosis, prognosis and early detection of recurrence in HCC.

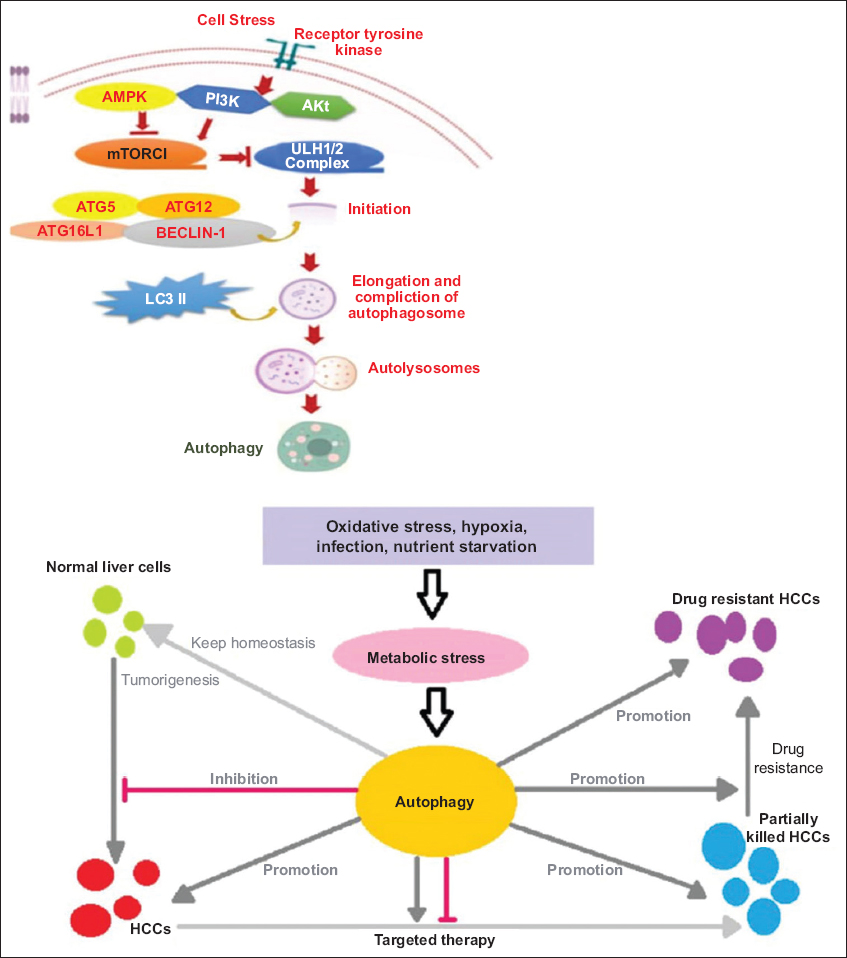

Figure 2 Autophagy reduction contributes to tumor initiation, and increased autophagy allows cancer cells to survive under stress conditions. The function of autophagy in liver cancer is a topic of concern, and it plays multiple roles in different situations. In normal liver cells, basal autophagy is involved in maintaining liver homeostasis. Once hepatocellular carcinoma (HCC) is established, autophagy plays a promotional role in tumor development, metastasis, and therapeutic resistance. Thus, appropriate autophagy inhibition could effectively suppress HCC growth and metastasis. However, in targeted HCC therapy, the role of autophagy is uncertain, for either inhibition or promotion, according to the different characteristics of agents. Autophagy induction at the tumor development stage promotes resistance to cancer therapy, while inhibition of autophagy promotes cancer cell death during cancer therapy

LC3-II, a widely used autophagic biomarker, was revealed to play a significant role in the development of cancer and is associated with the poor survival of cancer patients. Wu et al reported that LC3-II was overexpressed in the tumor region, compared with normal adjacent tissues, and the expression levels of LC3-II were positively related with vascular invasion and lymph node metastasis of HCC patients [96].

The expression level of Beclin 1 may be a valuable biomarker for HCC. A study of 103 primary HCC patients showed that the levels of Beclin 1 were significantly lower in HCC tissues than in adjacent tissues (72.8% vs. 89.5%). Beclin 1 may be a valuable prognostic marker of liver cancer, and loss or lower expression of Beclin 1 may suggest an inferior prognosis for HCC [97].

Moreover, p62 accumulation, induced by loss of autophagy, contributes to hepatic tumor formation [93,98]. Autophagy deficiency causes accumulation of p62, resulting in development of HCC.

Another serological and histochemical marker that is specific for HCC is GPC3. GPC3 is a member of the glypican family and belongs to a group of heparan sulfate proteoglycans bound to the outer surface of the cell membrane. GPC3 has been detected in the placenta and fetal liver, but not in other adult organs [99]. A dramatic elevation of GPC3 expression has been reported in a large proportion of HCCs, whereas its expression has been shown to be less frequent in preneoplastic or entirely absent in non-neoplastic liver tissue. Comparing the overall survival between GPC3-positive and GPC3-negative HCC patients, the GPC3-positive patients had a significantly lower 5-year survival rate than the GPC3-negative patients (54.5% vs. 87.7%) [100]. According to previous reports, higher levels of GPC3 expression were observed in moderately or poorly differentiated HCC, while at the same time GPC3 expression seems to be significantly linked to a poor prognosis after surgical resection in HCC patients [101].

Another biomarker that seems to be involved in the development and progression of HCC is β-catenin. The Wnt/β-catenin pathway has shown significant promise as a potential target for novel molecular therapies. Moreover, β-catenin mutation seems to be related to the prognosis of HCC. Specifically, according to research studies, β-catenin protein expression is significantly greater in HCC tissue (72.94%) compared with normal and cirrhotic liver (22.35% and 26.67%, respectively) [102,103]. β-catenin mutation is more frequently seen in earlier stages of HCC (I and II). Aberrant Wnt/β-catenin signaling has been shown to be common in HCC tumors and has a clinical impact on tumor behavior, prognosis and response to treatment. As a result, Wnt/β-catenin may be a promising target for future HCC therapies [104]. Currently, there are 2 clinical phase I/II trials studying the use of agents (such as PRI-724 and OMP-18R5) that specifically target the β-catenin signaling pathway to treat solid tumors and myeloid malignancies [105]. Recently, the Japanese Society of Hepatology’s guidelines added to their recommendations the use of AFP in combination with des-carboxyprothrombin and AFP-L3 [106]. The guidelines of the American Association for the Study of Liver Diseases (AASLD) and the European Association for the Study of the Liver (EASL) include CD34, CK7, glypican 3, HSP-70, and glutamine synthetase staining to improve diagnostic accuracy [10,107]. Regarding prognosis, the EASL recommends the use of AFP levels, VEGF and angiopoietin 2 as independent prognostic biomarkers, in addition to the possible implementation of keratin 19 and EpCAM because of their correlation with worse outcomes in patients with HCC [10,108]. Lastly, cell free DNA (cfDNA) and circular RNAs (such as cSMARCA5 and circZKSCAN1) have been used in clinical trials as biomarkers for the diagnosis, early recurrence detection and treatment of HCC [109,110]. Most recent publications suggest that the combination of 2 or more biomarkers and additional demographic information can improve their sensitivity, specificity and predictive value. However, further research is needed to assess the use of biomarkers in clinical practice in patients with HCC. Table 4 summarizes the principal biomarkers of HCC with future perspectives.

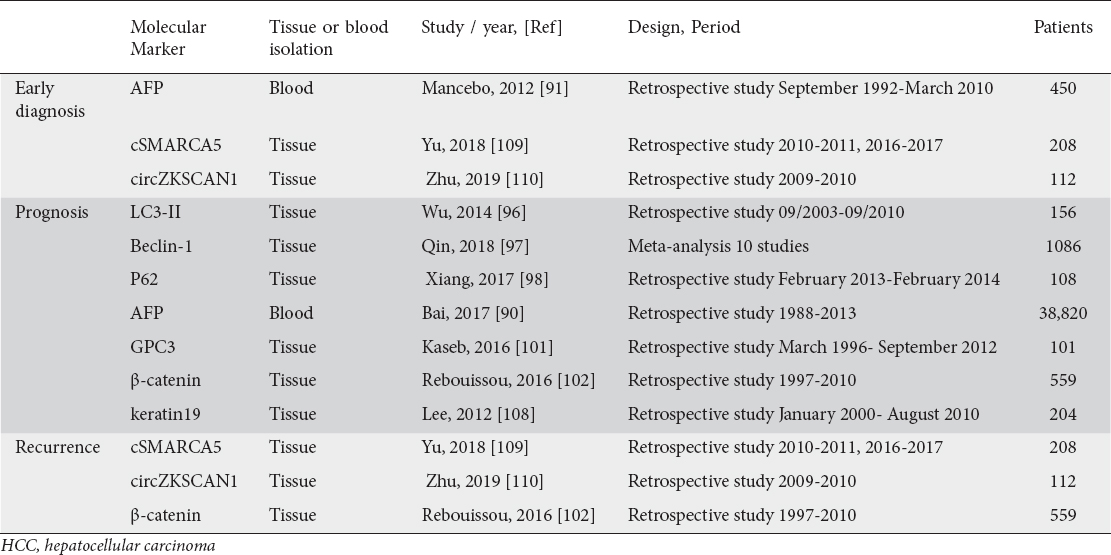

Table 4 Principal HCC biomarkers with future perspectives for early diagnosis, prognosis and disease recurrence

Early diagnosis of HCC and detection of disease recurrence may offer patients the opportunity to undergo therapeutic interventions (such as hepatectomy or LT). For this reason, biomarkers are inextricably linked to the surgical management of patients with HCC. As mentioned above, the specificity of AFP for HCC is close to 100%, but the sensitivity falls below 45%, making it imperative to find other more sensitive molecular markers for the diagnosis and early identification of recurrence of HCC. Towards this direction, molecules such as GPC3, cfDNA and circular RNAs can be used as biomarkers for diagnosis, early recurrence detection and treatment of HCC. The above molecules can be isolated from both tissue and blood samples, whereas autophagy molecules and wnt/β-catenin are both isolated from tissue. This feature does not contraindicate their use in clinical practice, since their levels are related with HCC prognosis and further future therapeutic decision.
