Laparoendoscopic rendezvous may be an effective alternative to a failed preoperative endoscopic retrograde cholangiopancreatography in patients with cholecystocholedocholithiasis

Introduction

Endoscopic retrograde cholangiopancreatography (ERCP) has been one of the most common methods for diagnosing and managing choledocholithiasis for several years [1-6]. In fact, it still remains the gold standard method of treatment for choledocholithiasis, despite the fact that magnetic resonance cholangiopancreatography (MRCP) and endoscopic ultrasound (EUS) are also used as the principle diagnostic tools [7,8]. Although there is evidence from prospective randomized trials suggesting that the so-called one-stage management of cholecystocholedocholithiasis is very effective [9-11], two-stage techniques, mainly preoperative ERCP followed by laparoscopic cholecystectomy (LC), are widely preferred by most clinicians.

However, ERCP may present some disadvantages and complications, one of which is a failure to cannulate the ampulla of Vater, with a rate ranging from 4-18% [12]. Moreover, post-ERCP pancreatitis (PEP) could result from inadvertent pancreatic cannulation and contrast injection, while general anesthesia may be required when patients are unable to undergo or tolerate ERCP for various reasons. An effective, though technically demanding, method for such cases could be the laparoscopic exploration of the common bile duct (CBD) during the laparoscopic cholecystectomy, which should ideally be equipped with a flexible laparoscopic choledochoscope. Alternatively, another effective procedure could be the so-called laparoendoscopic rendezvous (LERV) [9,10], during which the gallbladder is removed laparoscopically and the CBD is cleared endoscopically, while selective cannulation is simultaneously applied. This method does not require additional equipment apart from what is commonly used in the classic LC and ERCP procedures.

In this paper the gastroenterologist’s experience with LERV is presented, focusing on the advantages and disadvantages of this technique, which is directly compared with the established routine approach of ERCP followed by LC.

Patients and methods

Patients

Between May 2006 and May 2012 a total of 886 consecutive patients were admitted to the Department of Gastroenterology, University Hospital of Larissa, Greece, with symptomatic cholecystocholedocholithiasis and underwent ERCP and endoscopic sphincterotomy (ES). Among these, 90 patients were treated with the LERV technique and 796 with the standard two-stage approach (ERCP/LC). The LERV group consisted of 56 female and 34 male patients, with a median age of 68 years (range 13-89), while the two-stage group comprised 449 females and 347 males, with a median age of 68.3 years (range 17-97). The age and sex distributions were similar in both groups (P>0.1 in both cases). Fifty patients of the LERV group were derived from a completed cooperative study of the Departments of Surgery and Gastroenterology at the University Hospital of Larissa, in which the LERV technique had been used [13]. The remaining 40 patients in the same group were either those in which ERCP had failed (31 patients) or patients who refused or were unable to undergo preoperative ERCP as part of the standard two-stage approach (9 patients) (Table 1).

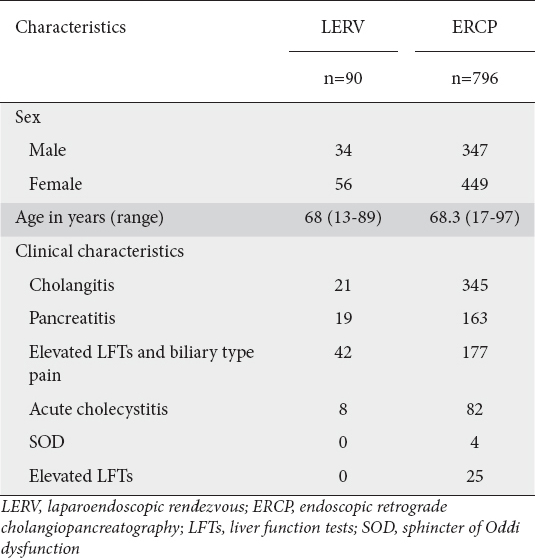

Table 1 Demographic and clinical characteristics of patients

In the University Hospital of Larissa, approximately 900 ERCPs are performed per year, either as emergency or elective cases, all of which involve benign or malignant biliary disease. The combined method of preoperative ERCP/ES with CBD clearance, followed by LC during the same admission, comprises the standard CBD stone management protocol. However, the LERV technique has been alternatively offered to patients with cholecystocholedocholithiasis since May 2006, when this method was adopted in our hospital. In fact, LERV can effectively be used instead of ERCP under benzodiazepine sedation, as part of a two-stage approach, if the patient is unwilling to undergo or is intolerant of the latter method.

MRCP is initially conducted in patients who are at intermediate risk of having cholecystocholedocholithiasis. This group includes patients diagnosed with acute biliary pancreatitis, as well as cases with a moderately dilated bile duct and/or deranged liver function tests. In contrast, MRCP is not routine practice for patients at high risk for cholecystocholedocholithiasis. Patients in this group may suffer from acute cholangitis, obstructive jaundice combined with biliary colic, and CBD stones may have also been traced during the ultrasound (US) scan [14]. For this subgroup of patients, the LERV procedure is commonly followed in both emergency and elective cases.

LERV

The LERV procedure requires close collaboration and synchronization among surgeons, anesthesiologists and gastroenterologists. The endoscopic team is charged with the transfer and installation of the endoscopic equipment in the operating room.

The LERV procedure, described in detail by Tzovaras et al [13], starts with the laparoscopy, during which the patient is under general anesthesia, in the supine position. More specifically, the cystic duct is dissected free and clipped toward Hartmann’s pouch, soon after the dissection of Calot’s triangle and the clip ligation of the cystic artery have been performed. Following this, intraoperative cholangiography is performed, by inserting a 7-Fr catheter into a small opening just below the clip ligation of the cystic duct, with the purpose of confirming the duct stones initially detected during US and MRCP. C-arm fluoroscopy is used during the whole stage, completed when a jagwire is advanced through the catheter into the duodenum. The next stage involves endoscopy, whereby the wire is first trapped into a polypectomy loop and then pulled through the mouth, with the scope remaining in situ. In this way, one end of the wire comes out of the cholangiography forceps and the other through the mouth. What follows is elective CBD cannulation, conducted by the means of a sphincterotome advanced over the wire, which is removed through the mouth, and remains in the distal CBD. At the same time, the laparoscopist clips and sections the cystic duct. Sphincterotomy is then performed, together with catheter CBD clearance under fluoroscopic guidance. Finally, the endoscope is withdrawn, under simultaneous air suction, and the gallbladder is dissected from the liver bed. A corrugated gravity drain is routinely placed in the subhepatic space.

Results

LERV-related outcomes

The initial concept of LERV was not achieved (i.e., the cannulation of the CBD with the LERV technique) in 22 of 90 patients (success rate 75.5%), because the guidewire introduced via the cystic duct could not be advanced into the duodenum in order to be found, trapped, and pulled out by the endoscopist (Table 2).

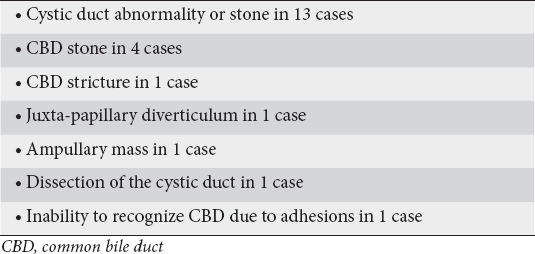

Table 2 Causes of failure to advance the guidewire into the abdomen

In these 22 patients for whom the LERV failed, the CBD was successfully cannulated via the classic endoscopic route, as performed in a routine ERCP, in 19 patients. In one patient we did not proceed to ERCP because of a negative intraoperative cholangiogram, while in two patients the procedure was converted to open (Fig. 1).

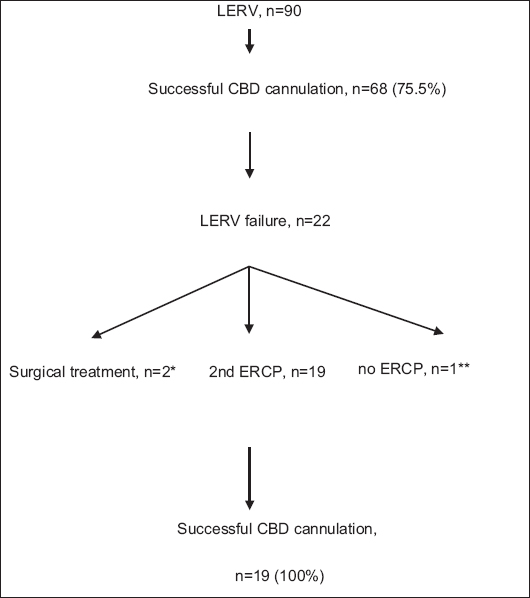

Figure 1 Flow chart

*procedure was converted to open: adhesions, cystic duct dissection.

**negative intra-operative cholangiogram.

LERV, laparoendoscopic rendezvous; ERCP, endoscopic retrograde cholangiopancreatography; CBD, common bile duct.

Regarding procedure-related complications, no episodes of clinical post-ERCP pancreatitis were recorded. The median amylase value measured 12 h after the procedure was 65 U/mL (range 16-1159). Two deaths were recorded, one due to intra-abdominal abscess and one due to perforation during ES (1.1%). Three patients exhibited post-ERCP cholangitis (3.3%), successfully treated with antibiotics; one patient presented pulmonary embolism (1.1%) and another one sphincterotomy-related bleeding (1.1%), which ultimately required endoscopic intervention.

The simultaneous procedure of CBD clearing and gallbladder removal was successfully conducted in 77 patients, thus leading to a high success rate (85.5%). In all cases, CBD clearance was facilitated by ES, which enabled the extraction of a median number of 2 stones (range: 1-5), with a median size of 5 mm (range: 2-12). Fluoroscopic images were used as means of calculating stone size.

In 13 cases, a remaining large stone prevented complete CBD clearance, even though selective CBD cannulation had been achieved and sphincterotomy performed. Since the operative time was prolonged, a stent was used to facilitate CBD drainage. Mechanical lithotripsy by the means of repeated ERCP was successfully conducted a few weeks later.

Regarding completion time calculations, the entire LERV procedure lasted for a median time of 95 (range 65-200) min, while the respective median time for the endoscopic part was 32 (range 15-70) min.

ERCP/LC-related outcomes

During the same period, 796 ERCPs were performed for patients with symptomatic cholecystocholedocholithiasis. Cannulation of CBD and ES were achieved in 715 patients (success rate 89.8%). Among the 81 patients for whom ERCP failed, 72 patients presented a difficult anatomy (mainly a large diverticulum), which prevented the Vater ampulla cannulation. In addition, three cases of poor patient cooperation caused the premature discontinuation of the procedure. In the other six patients the ampulla of Vater could not be reached because of chronic duodenal ulcer disease in three patients, infiltration of the duodenal bulb due to pancreatic cancer in one patient, previous Billroth II surgery in another patient, and stenosis preventing insertion of the scope into the esophagus in another patient.

ES was performed in all patients in order to facilitate CBD clearance with balloon or basket stone extraction catheters. Depending on the size of the stone, mechanical lithotripsy and dilatation were performed at the site of sphincterotomy. Complete stone removal of a median stone size of 8 mm (range: sludge to >25 mm) was achieved in 592 cases (success 82.8%). In 123 patients complete stone removal could not be achieved for various reasons (Table 3), mainly because of large stone size (>15 mm).

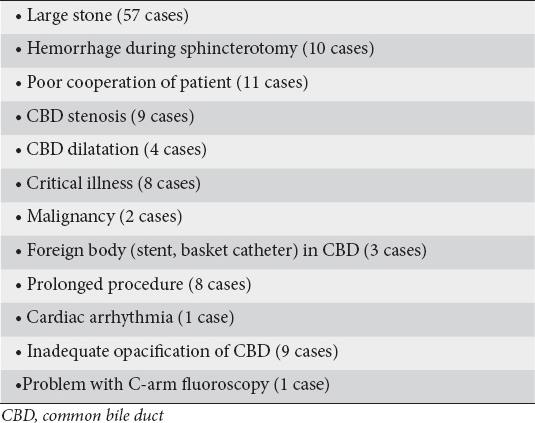

Table 3 Causes of incomplete CBD clearance

Regarding the complications observed (Table 4), the incidence of post-ERCP pancreatitis was 2.91% (23 episodes). Severe pancreatitis was documented in three patients (0.38%). The medium amylase value measured 12 h after the procedure was 133.64 U/mL (range 19-2300). One death due to pancreatitis and prolonged ICU hospitalization was recorded. Seven patients suffered from post-ERCP cholangitis (1.2%) and were treated with antibiotics. Perforation occurrence was 0.27% (two patients) and both patients were treated conservatively. One patient exhibited cardiac arrhythmia during the procedure (0.13%), resulting in premature discontinuation of the ERCP. Sphincterotomy-related bleeding occurred in two cases (0.27%) and was successfully managed by means of endoscopic intervention.

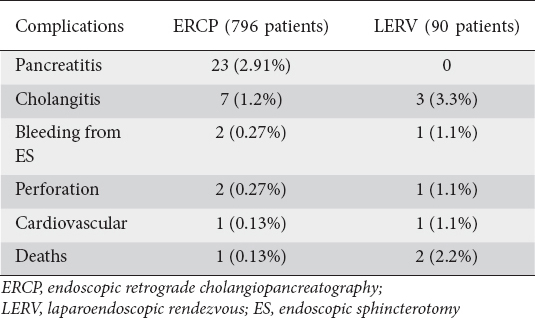

Table 4 Complications related to ERCP

Regarding time duration calculations for the group of patients treated with the two-stage approach, the median ERCP duration was 29 (range 15-60) min, while the median duration for the subsequent LC was higher, reaching 50 (range 25-120) min.

Discussion

The results of the present study suggest that LERV could be a safe alternative for patients with symptomatic cholecystocholedocholithiasis in whom ERCP as part of a two-stage approach has either failed or is considered unsuitable.

The anatomy of the periampullary region and the endoscopist’s experience seem to influence CBD cannulation failure during ERCP, reported to range between 4% and 18% [14]. Moreover, the study confirms that CBD cannulation is most likely to be impeded by a very common anatomical difficulty, such as a juxta-papillary diverticulum [13], which most of the patients in the sample presented.

However, ERCP entails various and serious complications, one of which is acute pancreatitis. In fact, the incidence of PEP usually ranges from 5-10%, although it may exceed 25% in certain high-risk populations [15]. In the University Hospital of Larissa, where the present research was conducted, the common practice is for ERCP procedures to be performed in the radiology suite, where the patient is under sedation but without anesthesia or even anesthetic supervision. Therefore, the time for cannulating a ‘‘difficult’’ papilla in low-compliance patients is usually limited [14]. All three endoscopists performing ERCP are considered to be among the most highly experienced, each having participated in at least 1000 procedures. In our study there was a higher cannulation success rate with the classic ERCP compared with the LERV technique (89.8% vs. 75.5%, P=0.0001). Interestingly, ERCP performed intraoperatively was always successful, even in cases where LERV was unsuccessful. A possible explanation could be that the procedures were performed under anesthesia.

Wang et al [16] enrolled randomized controlled trials (RCTs) in their meta-analysis that compared preoperative and intraoperative ES in patients with gallbladder and suspected CBD stones. They reported significantly higher failure rates for CBD cannulation in the preoperative ES group, but they referred to studies that did not use the same LERV or ERCP technique and did not define the success of the LERV technique in the same way. Additionally, they did not include patients with a surgically altered anatomy.

Morino et al [9] showed that the LERV technique presented a lower failure rate compared with the sequential ERCP/LC: 5% vs. 20%. In our opinion, a failure rate of 20% is extremely high for a high-volume tertiary hospital. This significant difference may be explained in two ways. In difficult cases, the endoscopist avoided taking risks in preoperative ERCP, since he was aware of the fact that CBD cannulation could also be performed during the LC. Moreover, when LERV is conducted in difficult patients, the cannulation of the papilla can be facilitated by the use of a guidewire, passing through the cystic duct into the CBD to reach the duodenum.

The main reason for LERV failure was the inability to introduce the guidewire through the cystic duct. El Geidie et al [17] found the same results in their controlled randomized study. In particular, they tried to pass a guided wire through the cystic duct into the CBD to facilitate bile duct cannulation at the subsequent endoscopy (the endolaparoscopic ‘‘rendezvous’’ described by Cavina et al), but found it technically difficult and omitted this step in most cases.

In fact, LERV seems to be as effective as classic ERCP for complete CBD clearance (85.5% vs. 82.8%, P>0.1), although the stones extracted during LERV are usually smaller (median diameter 5 mm vs. 8 mm). Complete CBD clearance of large stones using sphincterotomy dilatation and mechanical lithotripsy in the operating room would be time consuming and would prolong the time of surgery.

One of the main advantages of the rendezvous approach is the elective CBD cannulation, because it seems to reduce the possibility of post-procedural pancreatitis, as was clearly demonstrated in two relevant RCTs [10,14]. In our study none of the patients in the LERV group had an episode of clinical PEP, while in the classical ERCP group 23 episodes of PEP and a death occurred. The median value of amylase, measured 12 h after the procedure, was higher in patients in the classic ERCP group than in patients in the LERV group (133.64 vs. 65, P<0.001). A value of amylase three times lower than normal, after the procedure, has almost never been associated with clinical pancreatitis. However, it has been speculated that hyperamylasemia represents a sign of pancreatic damage, which is not always clinically interpreted as an episode of acute pancreatitis. The fact that the LERV group had a lower incidence of hyperamylasemia might suggest that LERV is safer than standard ERCP as far as the possibility of PEP is concerned, although it rarely occurs. The occasionally increased post-procedure amylase value may be due to the manipulation of the sphincter during sphincterotomy and stone extraction.

Another advantage of the LERV technique over traditional ERCP concerns the method of contrast injection through the cystic duct. In particular, in the LERV technique, one of the first stages is the so-called “intraoperative cholangiogram”, performed with contrast injection through the cystic duct, in contrast to the retrograde injection, typically performed in traditional ERCP. There is evidence that, if contrast material is accidentally introduced into the pancreatic duct under high pressure, it may cause post-ERCP pancreatitis [18]. Interestingly, in our study there was an inadvertent contrast injection into the pancreatic duct because of a stone that had been impacted in the distal CBD, but the patient did not experience an acute pancreatitis. In the case of inadvertent pancreatic duct cannulation and/or contrast injection, several studies have demonstrated that the use of a short, 3 Fr or 5 Fr pancreatic stent could minimize the risk of mild or moderate PEP, although the risk of severe post-ERCP pancreatitis does not seem to be eliminated [18].

Regarding the postoperative treatment, although previous studies reported a reduction in hospital stay by an average of 1.5 days in the LERV group [13], in our study we could not make this comparison, since many patients who underwent an uneventful ERCP had to prolong their admission because of various reasons irrelevant to the ERCP.

Regarding the technical problems of the combined approach, most relate either to the supine position, which may cause difficulties in the retrograde cannulation of the papilla, or to the gas needed for endoscopy, which may possibly interfere with LC because of the distention of bowel loops. In fact, El Geidie et al [17] faced problems with the cannulation of the papilla in the supine position, thus having to turn the patient to the prone position to complete ERCP.

Although there is evidence from several studies that the LERV technique is effective, it has gained less popularity than expected. This may be due to organizational, logistical and technical problems, such as the availability and training of surgical and endoscopic teams and the prolonged use of the operating room. However, in our hospital successful coordination between the surgical and the endoscopic teams was achieved, since there was availability on a daily basis. It was also obvious that the technical facilities available in the Radiology Department were much better than those in the operating room. Consequently, our equipment had to be transferred and re-installed. As regards the endoscopic team, the time required for the classical ERCP was much shorter than the time for the LERV technique.

It is difficult to perform the LERV technique in critically ill patients. Although in a previous study Tzovaras et al [19] included emergency cases, in most of the RCTs patients with acute cholangitis or necrotizing biliary pancreatitis were excluded [9,10,17]. According to the literature, early ERCP is recommended for patients with acute cholangitis superimposed on acute pancreatitis [20]. In our department, ERCP is performed in patients with septic cholangitis or severe biliary pancreatitis within 24 h from their admission.

Our study is a retrospective, non-randomized controlled study that reflects the daily clinical practice in a high volume, tertiary referral university hospital. Our aim was to extend and complete previously published studies from our hospital, focusing on the gastroenterological aspects of the whole process [13,19]. Another limitation of this study is the imbalance in the number of patients who underwent ERCP/LC and LERV.

In conclusion, provided that there is expertise and advanced equipment, the LERV procedure could be a safe and attractive alternative for the management of concomitant cholelithiasis and choledocholithiasis, particularly in cases with patient-related risk factors for acute post-ERCP pancreatitis or in cases in which ERCP has already failed to solve the problem. Although repeat ERCP under anesthesia seems to have higher success rates than LERV, LERV remains the most reasonable alternative in cases where cholecystectomy cannot be further delayed and is therefore going to be performed as a first procedure.
