Fortis Hospital, Mohali, Punjab; Postgraduate Institute of Medical Education and Research, Chandigarh, India
aDepartment of Gastroenterology, Fortis Hospital, Mohali, Punjab (Puneet Chhabra, Deepak K. Bhasin), India; bDepartment of Gastroenterology, Postgraduate Institute of Medical Education and Research, Chandigarh (Surinder S. Rana, Vishal Sharma, Ravi Sharma), India
Background Hypocalcemia is a marker of poor prognosis in acute pancreatitis (AP) but the prognostic significance of hypocalcemic tetany in patients with AP has not been studied. We aimed to determine the prognostic significance of hypocalcemic tetany in patients with AP.
Methods Consecutive patients of AP who presented within 7 days of symptoms were included. Serum calcium levels were measured on admission and the patients were divided into two groups based on the presence (group 1) or absence of hypocalcemia (group 2). Chvostek and Trousseau signs were sought in all patients with hypocalcemia and the outcome measures were compared between patients with normocalcemia, asymptomatic and symptomatic hypocalcemia (tetany). The outcome parameters assessed were persistent organ failure (POF), need for intervention, and mortality.
Results Of 105 patients (53 male; mean age 37.34±12.62 years), 37 (35.2%) had hypocalcemia (group 1) and 68 (64.8%) had normal corrected serum calcium levels (group 2). Patients with hypocalcemia had significantly higher frequency of POF, mortality and need for intervention (P<0.05). Twelve of 37 (32.4%) patients with hypocalcemia had tetany. Patients with tetany had significantly lower serum corrected calcium and ionized calcium levels compared with patients with asymptomatic hypocalcemia (P<0.05). Patients with tetany had significantly higher mortality rates compared with patients with asymptomatic hypocalcemia (100% vs. 8%; P=0.00001) as well as POF (100% vs. 32%; P=0.000006).
Conclusion Presence of hypocalcemic tetany in AP patients bears a poor prognosis and is associated with increased mortality.
Keywords: Hypocalcemia, tetany, acute pancreatitis
Ann Gastroenterol 2016; 29 (2): 214-220
Acute pancreatitis (AP) is an acute inflammatory disease of the pancreas resulting from autodigestion of the pancreatic tissue due to premature activation of the enzymes within the acini leading to various local and systemic complications. The majority of the patients have “self-limiting disease” while around 20% of the patients have severe disease with mortality ranging from 5-20% . The factors that determine the severity of AP have not been completely understood, and hence it is difficult to predict the clinical course of patients with AP .
Hypocalcemia in AP has long been described but its pathogenesis is still debatable. The first clue to the puzzle came from Langerhans in 1890 when he described the formation of calcium soaps in the necrosed fat in AP . Fifty four years later Edmondson ascribed hypocalcemia to the formation of these soaps . Although it seemed plausible that extraskeletal sequestration due to formation of soaps was the mechanism responsible for hypocalcemia in AP. In AP, resistance of hypocalcemia to parenteral calcium supplementation remains unexplainable in view of the abundant calcium stores. Various experiments and studies in 1990’s showed that hypocalcemia was due to the raised glucagon levels in AP and hypocalcemia occurred due to decreased release of calcium from the skeleton as a result of calcitonin release stimulated by glucagon [5,6]. Another explanation given for hypocalcemia was the low magnesium levels which render the target organs resistant to the actions of parathyroid hormone. Magnesium levels have been found to be high in the necrosed pancreatic tissue . Ryzen et al showed in his study that magnesium deficiency may play a role in hypocalcemia in AP despite normal serum magnesium levels. The authors showed that patients with normal serum magnesium had a low magnesium concentration in the peripheral blood mononuclear cells and this concentration correlated with the serum calcium values in hypocalcemic patients . Magnesium deficiency was more pronounced in patients with alcoholic AP. Various authors have also proposed the role of relative deficiency of parathyroid hormone in hypocalcemia of AP [9-11]. Hypoalbuminemia has also been described as the cause for hypocalcemia in AP . More recently, the role of free fatty acids in sequestration of calcium has been described in two animal studies [13,14].
Hypocalcemia has been demonstrated to be a useful marker predicting severity in AP and is part of several scoring systems predicting severity in AP [15-18]. There are few case reports of hypocalcemic tetany in AP but the prognostic significance of hypocalcemic tetany has not been studied in patients with AP [7,19,20]. The present study aimed to determine the prognostic significance of hypocalcemic tetany in patients with AP.
We conducted this prospective observational study at a large tertiary care referral center in North India between October 2013 and July 2014. The study was approved by the Institute Ethics Committee and all participants gave informed consent for participation in the study. All consecutive patients of AP presenting within 7 days of onset of symptoms to the hospital were enrolled.
AP was defined as per revised Atlanta classification  i.e., presence of two or more of the following: characteristic abdominal pain; serum amylase and/or lipase raised three times above the upper limit of normal; or imaging consistent with AP. Biliary etiology was defined by the detection of gallstones on imaging and exclusion of other causes. In a patient with recent history of alcohol consumption and absence of other causative factors, AP was ascribed to alcohol. Post endoscopic retrograde cholangiopancreatography (ERCP) pancreatitis was defined as presence of significant pain requiring hospitalization for at least 48 h of admission after ERCP with elevated amylase and lipase (>3 times above the upper limit of normal measured after 24 h) . Patients who gave no history of recent alcohol consumption, had no gallstones on imaging and work up for other causes was inconclusive, were labeled as having idiopathic pancreatitis.
Age above 18 years, hospital admission within 7 days of onset of symptoms, and willingness to participate in the study were the inclusion criteria. Patients younger than 18 years of age, hospitalized after 7 days of onset of symptoms, pregnant patients, patients not willing to participate in the study, patients with recurrent AP and patients with imaging suggestive of chronic pancreatitis were excluded from the study. Conditions associated with hypocalcemia like chronic kidney disease or hypoparathyroidism, steroids, patients with hematological malignancies, burns or crush injuries were also part of the exclusion criteria. Patients who met the inclusion criteria were included and followed until recovery or death.
On admission all patients underwent routine investigations including hemogram with hematocrit, renal function tests, liver function tests, fasting serum triglycerides, serum calcium, ionized calcium levels, phosphorus, magnesium, arterial blood gas analyses, iPTH and vitamin D levels. Contrast enhanced computed tomography (CECT) of abdomen was done between days 5 and 7 of onset of symptoms. CT severity index (CTSI) score was calculated based on the sum of the Balthazar and pancreatitis necrosis score on a CECT done with pancreatic protocol. Bedside index of severity in AP (BISAP), systemic inflammatory response syndrome (SIRS), and acute physiological and chronic health evaluation (APACHE) II were recorded in all patients within 24 h of admission. Severity was defined as per revised Atlanta criteria .
Tetany was defined as presence of either Trousseau or Chvostek sign in a patient with hypocalcemia . Chvostek sign was elicited by tapping on the face at a point just anterior to the ear and just below the zygomatic bone. Twitching of the ipsilateral facial muscles was taken as the positive response. For Trousseau sign, if not present spontaneously, a sphygmomanometer cuff was inflated at 20 mmHg above the patient systolic pressure for 3 min and carpopedal spasm was taken as the positive response. The clinical signs of tetany were sought for in the first 24 h from admission and their demonstration at any time during these 24 h was considered as presence of tetany.
All patients were given standard medical care throughout the study period. In addition, all patients with hypocalcemia received 10 mL of 10% w/v calcium gluconate intravenously given in 5% dextrose or 0.9% saline slowly over 5 min followed by a continuous infusion of 10 ampoules of calcium gluconate dissolved in 5% dextrose or 0.9% sodium chloride over 24 h until the resolution of hypocalcemia. All patients who had tetany were given intramuscular 6 lakhs IU of vitamin D. Vitamin D was also given to other patients who were vitamin D deficient. Patients who had hypomagnesemia also received intravenous magnesium bolus followed by infusion. Clinical findings were periodically recorded and investigations were repeated on as and when required basis. Patients were subjected to intervention (surgery, percutaneous drainage or endoscopy) as and when required according to the patients clinical condition. The patients were followed up until clinical recovery or death.
We used IBM SPSS Statistics version 22.0 (IBM Corp, Armonk, NY, USA). The descriptive data were presented as percentages for categorical variables and mean±SD or median (IQR) for quantitative variables. Continuous data were tested for normal distribution prior to stastistical analysis using Kolmogrov Smirnov test. The chi square test was used to compare the categorical variables, Mann-Whitney test was used to compare the continuous variables in case of skewed data, and Student’s t-test for normally distributed data. We used area under the receptor operative curve (AUROC) for univariate analysis. The cut-off value for calcium was derived using the coordinate points on ROC with optimal sensitivity and specificity. The threshold values of 7.5 for APACHE II and 2.5 for BISAP were used as coordinate points on ROC curve because these were the nearest values to APACHE ≥ 8.0 and BISAP >2 which have already been described in literature to have a significant impact on outcome in AP. We calculated the sensitivity and specificity for mortality using tetany as a variable with the help of a 2x2 contingency table. A 2-tailed P-value ≤0.05 was considered statistically significant.
One hundred and fifty three patients were assessed for possible inclusion in the study and 48 patients were excluded. Finally, 105 patients (53 male; mean age 37.34±12.62 years) were included in the study. The etiology of AP was gallstones in 47 (44.8%), alcohol in 30 (28.6%), idiopathic in 17 (16.2%), both alcohol and gallstones in 6 (5.7%) and post ERCP in 5 (4.7%) patients. Of 105 patients, 37 (35.2%) patients had hypocalcemia and 68 (64.8%) patients had normal calcium levels.

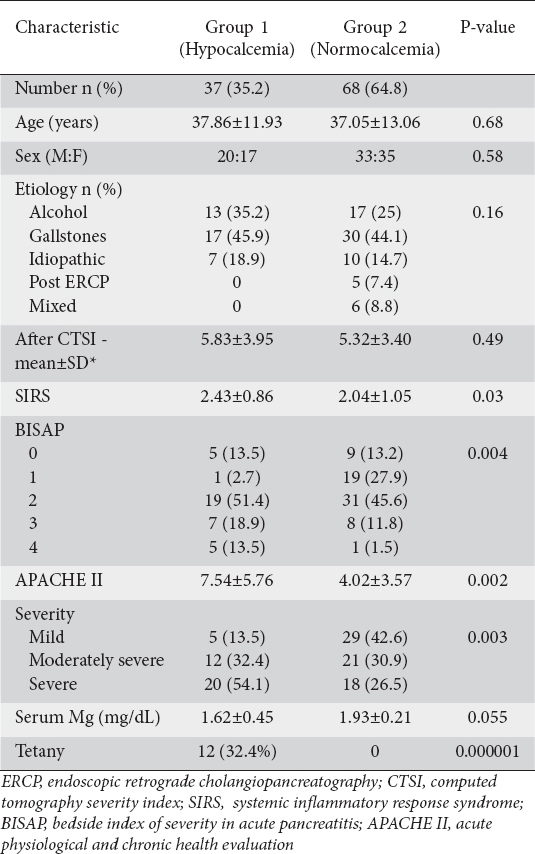

Table 1 Comparison of clinical profile of hypocalcemic and normo-calcemic groups
The two groups were similar in age, sex, etiology and mean CTSI scores. Compared with group 2, patients in group 1 had higher SIRS score (2.43 vs. 2.04; P=0.03), APACHE II score (7.54 vs. 4.02; P=0.002) and BISAP score (BISAP score of 4 in 13.5% patients vs. 1.5% patients; P=0.004). The majority of the patients (54.1%) in group 1 had severe pancreatitis compared with 26.5% patients in group 2 (P=0.003). Tetany was observed in 32.4% of patients with biochemical hypocalcemia.

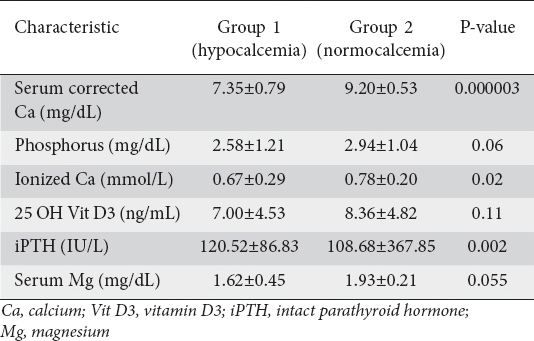

Table 2 Comparison of biochemical parameters between hypocalcemic and normo-calcemic groups
Levels of corrected serum calcium were significantly lower in group 1 (7.35 mg/dL) compared with group 2 patients (9.2 mg/dL) (P<0.001). Serum ionized calcium levels were also lower in group 1 compared with group 2 (0.67 mmol/L vs. 0.78 mmol/L; P=0.002). Vitamin D3 levels were similar between the two groups (7.0 ng/mL vs. 8.36 ng/mL; P=0.11). Levels of serum iPTH were significantly higher in group 1 compared with group 2 (120.52 IU/L vs. 108.68 IU/L, P=0.002). Mean serum magnesium levels were lower in group 1 compared with group 2 but the difference did not reach statistical significance (P=0.055).
The frequency of persistent organ failure (POF) was significantly higher in group 1 compared with group 2 [n=20 (54.1%) vs. n=18 (26.5%); P=0.005]. Patients in group 1 required intervention more frequently compared with group 2 [n=13 (35.1%) vs. n=11 (16.1%); P=0.04]. Of the 105 patients, 16 (15.2%) succumbed to their illness with 14 (37.8%) deaths in group 1 and 2 (2.9%) in group 2 (P<0.001).
Patients who had tetany were similar to patients with asymptomatic hypocalcemia in age (P=0.25), sex (P=0.73), etiology (P=0.80), BISAP (P=0.14) and mean CTSI scores (P=0.07). However, SIRS and APACHE II scores were significantly higher in patients with tetany compared with patients with asymptomatic hypocalcemia (2.91 vs. 2.2; P=0.02) and (10.6 vs. 6.04; P=0.009) respectively. All patients (100%) in the tetany group had severe pancreatitis while only 8 (32%) in the asymptomatic hypocalcemia group had severe pancreatitis (P=0.001).

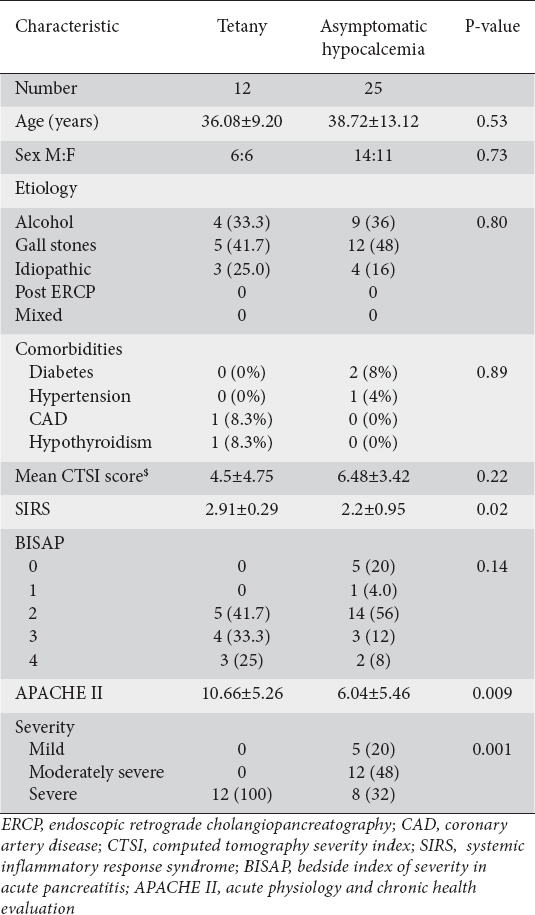

Table 3 Comparison of clinical profile between group of patients having hypocalcemic tetany and patients having asymptomatic hypocalcemia

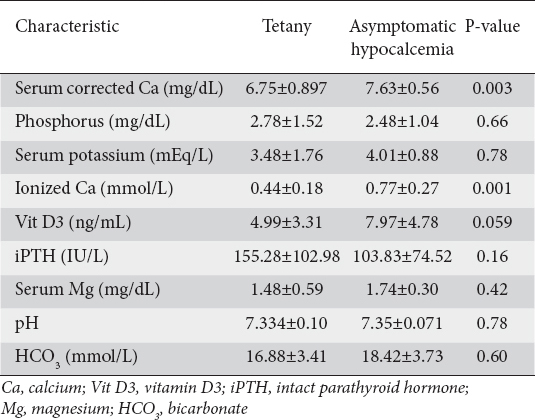

Table 4 Comparison of biochemical parameters between patients with tetany and asymptomatic hypocalcemia
Corrected serum calcium and ionized calcium levels were significantly lower in patients with tetany (6.75 vs. 7.63; P=0.003) and (0.44 vs. 0.77; P=0.001) respectively. Vitamin D3 levels were insignificantly different, lower in the tetany group as compared to the patients in asymptomatic hypocalcemia group (4.99 ng/mL vs. 7.97 ng/mL; P=0.059). Parathyroid hormone levels were insignificantly higher in patients with tetany as compared to patients with asymptomatic hypocalcemia (155 IU/L vs. 104 IU/L, P=0.16). Mean serum magnesium levels were similar in the two groups (1.48 mg/dL vs. 1.74 mg/dL, P=0.42).
All patients in the tetany group had POF (100%) compared with 8 (32%) patients in patients with asymptomatic hypocalcemia. Six patients (50%) in the tetany group required intervention compared with 7 (28%) patients in the asymptomatic hypocalcemia group, but the difference did not reach statistical significance (P=0.189). Interventions in these patients (6 in the tetany group and 7 in the asymptomatic hypocalcemia group) included percutaneous drainage in all of them and surgical necrosectomy in 2 additional patients in the tetany group. Thirty day (early) mortality was observed in 10 (83.3%) patients in the tetany group compared with 2 (8%) patients in the asymptomatic hypocalcemia group. Two more patients in the tetany group succumbed to the illness on days 41 and 81 from the onset of illness and thus all patients in the tetany group died.
Tetany was observed in 12 (32.4%) of patients (6 male) with biochemical hypocalcemia. All patients with tetany had severe pancreatitis. CECT could be done in 6 patients with tetany and 3 patients had CTSI score of 8 and the other 3 patients had CTSI of 10. Trousseau sign (Fig. 1A,B,C) could be elicited in all patients, whereas Chvostek sign could be elicited in only 3 (25%) patients. None of the patients with tetany had metabolic alkalosis. Ionized calcium less than 0.652 mmol/L predicted tetany with a sensitivity of 91.2% and specificity of 74.8% (optimal sensitivity and specificity as derived from ROC). Ionized calcium less than 0.652 mmol/L predicted severe pancreatitis with a sensitivity of 60.5% and specificity of 82.1% (optimal sensitivity and specificity as derived from ROC).
Figure 1 (A) Trousseau sign in a patient with acute pancreatitis. This patient had tetany on the day of admission in emergency and succumbed to respiratory failure within 24 h. (B) Trousseau sign in a 30/f who developed tetany on day 5 of onset of symptoms. (C) Carpal spasm in a patient who developed tetany within 72 h of onset of symptoms
On univariate analysis, APACHE II, BISAP, low corrected serum calcium levels and low ionized serum calcium levels were significant predictors of mortality (Table 5). For prediction of mortality, APACHE II ≥7.5 had a sensitivity of 81.3% and specificity of 84.3% whereas BISAP ≥2.5 had a sensitivity of 56.3% and specificity of 86.5%. The lower corrected serum calcium levels had a sensitivity of 81.3% and specificity of 87.6 % whereas lower ionized serum calcium levels had a sensitivity of 81.3% and specificity of 77.5% for prediction of mortality. Tetany predicted mortality with a sensitivity of 75% and specificity of 100%.

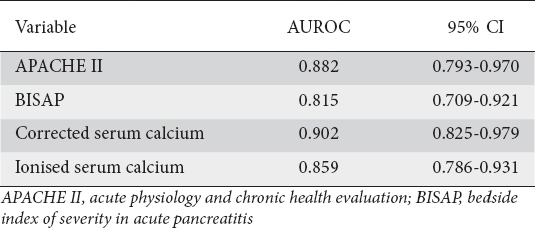

Table 5 Univariate analysis for prediction of mortality in acute pancreatitis using area under the receptor operative curve (AUROC)
The prognostic significance of hypocalcemic tetany had not been previously studied in patients with AP. We have shown that presence of tetany predicted a very poor prognosis in all our AP patients with tetany at presentation leading to high mortality. Tetany in AP was described for the first time by Hayes et al  in 1955. He described 2 cases of tetany in AP where the patients developed tetany within 24 h from AP onset. The authors showed that the only biochemical abnormality in these patients which could explain tetany was lower ionized serum calcium. The authors ascribed this to binding of ionized calcium to the increased concentration of free fatty acids in plasma. The authors also described that this part of early symptomatic hypocalcemia was not responsive to intravenous calcium but it responded to parathyroid hormone supplementation. In contrast, when the tetany recurred in these patients late in the disease, it responded to intravenous calcium gluconate and by this time the serum fatty acids level came down to normal limits. Hypomagnesemia has also been described as cause of tetany in AP. In our study only 2 of the 12 patients who developed tetany had lower serum magnesium levels. The mechanism of hypomagnesemia in AP has been shown by multiple experiments in animals to be related to accumulation of magnesium in the necrosed pancreatic tissue [24,25].
Impairment of calcium metabolism ensues in AP and serum calcium below 8 mg/dL within 48 h of admission is one of the Ranson’s criteria predicting severity in AP, and significantly higher mortality rates have been reported in patients with hypocalcemia [26,27]. We also found that patients with hypocalcemia had significantly a higher frequency of POF, need for intervention as well as mortality compared with patients with normal serum calcium levels. The low corrected serum calcium levels had a sensitivity of 81.3% and specificity of 87.6% whereas lower ionized serum calcium levels had a sensitivity of 81.3% and specificity of 77.5% for prediction of mortality.
What is already known:
Hypocalcemia is one of the predictors for severity in acute pancreatitis
Acute pancreatitis patients with hypocalcemia have a poor prognosis
There is paucity of studies linking tetany with an adverse outcome in acute pancreatitis
What the new findings are:
Tetany could be a marker for predicting the poor outcome in patients with acute pancreatitis
Tetany predicted mortality in acute pancreatitis with a specificity of 100%
Acute pancreatitis patients with hypocalcemic tetany should be managed aggressively and preferably in the intensive care unit
Tetany due to AP is very rare and such patients have extremely poor prognosis [28,29]. There are few case reports of hypocalcemic tetany in AP but the prognostic significance of hypocalcemic tetany has not been studied [7,20]. Most of the cases of tetany with AP reported in the literature succumbed to their illness thereby implying a grave prognosis of tetany. We also found that tetany had the highest specificity for prediction of mortality i.e. 100% compared with 84.3% for APACHE II (>7.5), 85.6% for BISAP (>2.5) and 86.7% for corrected serum calcium (<7.72 mg/dL).
Mortality in AP is initially determined by the heightened inflammatory response and POF. Later in the course of the disease, mortality is determined by complex events like development of infection, sepsis, need for surgery and consequent perioperative mortality. There are numerous prognostic models and markers to predict severe disease, prolonged hospital stay, infectious complications etc., but very few of them predict mortality, the final outcome in AP. In the current study, we found that presence of tetany had the highest specificity for prediction of mortality. Although the percentage of deaths in patients with severe pancreatitis (42.1%) was high compared with what has been described in literature, but this can be explained by the fact that our center is a tertiary care referral center, and, by the time patients are referred to us, they are morbidly sick.
The limitations of the current study include data from a single center and consequently the small number of patients with tetany. Moreover, we did not compare tetany/corrected serum calcium levels with other biochemical markers of severity and prognosis such as C-reactive protein. Finally, we did not test for serum calcitonin or urinary levels of variables of calcium metabolism and levels of free fatty acids which could have given more insight into the pathophysiology of hypocalcemia in AP. Although tetany carries a 100% specificity for prediction of poor outcome in AP, its absence does not rule out the existence of a severe disease with poor outcome.
In conclusion, AP patients with tetany have a very poor prognosis and presence of hypocalcemic tetany could be used as a simple bedside marker of increased mortality. Further studies with large sample size are required to confirm these results and also to study the pathophysiology of hypocalcemia and tetany in AP in order to treat these patients with poor prognosis more effectively.
1. Beger HG, Isenmann R. Surgical management of necrotizing pancreatitis. Surg Clin North Am 1999; 79: 783-800.
2. Banks PA, Bollen TL, Dervenis C, et al. Classification of acute pancreatitis-2012: revision of the Atlanta classification and definitions by international consensus. Gut 2013; 62: 1021-2011.
3. Langerhans R. Veber multiple fettige webs-nekrose verchow. Arch Pathol Anat 1890; 122: 252.
4. Edmondson HA, Berne CJ. Calcium changes in acute pancreatic necrosis. Surg Gynecol Obstet 1944; 79: 240-244.
5. Paloyan E, Paloyan D, Harper PV. The role of glucagon hypersecretion in the relationship of pancreatitis and hyperparathyroidism. Surgery 1967; 62: 167-173.
6. Avioli IV, BIrge SJ, Scott S, Sheiber W. Role of the thyroid gland during glucagon induced hypocalcemia in the dog. Am J Physiol 1969; 216: 939-945.
7. Edmondson AH, Berne CJ, Homann RE Jr, Wertman M. Calcium, potassium, magnesium and amylase disturbances in acute pancreatitis. Am J Med 1952; 12: 34-42.
8. Ryzen E, Rude RK. Low intracellular magnesium in patients with acute pancreatitis and hypocalcemia. West J Med 1990; 152: 145 148.
9. Condon JR, Ives D, Knight MJ, Day J. The aetiology of hypocalcemia in acute pancreatitis. Br J Surg 1975; 62: 115-118.
10. Robertson GM Jr, Moore EW, Switz DM, Sizemore GW, Estep HL. Inadequate parathyroid response in acute pancreatitis. N Engl J Med 1976; 294: 512-516.
11. Mcmahon MJ, Woodhead JS, Hayward RD. Proceedings: the nature of hypocalcemia in acute pancreatitis. Br J Surg 1976; 63: 663.
12. Imrie CW, Allam BF, Ferguson JC. Proceedings: hypocalcemia of acute pancreatitis: the effect of hypoalbuminemia. Br J Surg 1976; 63: 662-663.
13. Warshal AL, Lee KH, Napier TW, Fournier P, Duchainey D, Axelrod L. Depression of serum calcium by increased plasma free fatty acids in the rat: a mechanism for hypocalcemia in acute pancreatitis. Gastroenterology 1985; 89: 814-820.
14. Rattner DW, Napolitano LM, Corsetti J, et al. Hypocalcemia in acute pancreatitis occurs independently of changes in serum nonesterified fatty acid levels. Int J Pancreatol 1990; 6: 249-262.
15. Gutiérrez-Jiménez AA, Castro-Jiménez E, Lagunes-Córdoba R. Total serum calcium and corrected calcium as severity predictors in acute pancreatitis. Rev Gastroenterol Mex 2014; 79: 13-21.
16. Hong W, Dong L, Huang Q, Wu W, Wu J, Wang Y. Prediction of severe acute pancreatitis using classification and regression tree analysis. Dig Dis Sci 2011; 56: 3664-3671.
17. Shinzeki M, Ueda T, Takeyama Y, et al. Prediction of early death in severe acute pancreatitis. J Gastroenterol 2008; 43: 152-158.
18. Brisinda G, Maria G, Ferrante A, Civello IM. Evaluation of prognostic factors in patients with acute pancreatitis. Hepatogastroenterology 1999; 46: 1990-1997.
19. Patel MK, Barvaliya MJ, Patel TK, Tripathi CB. Stavudine induced acute necrotising pancreatitis with tetany in a pediatric patient. Indian J Pharmacol 2012; 44: 523-525.
20. Wills MR. Hypocalcemia and hypomagnesemia in acute pancreatitis. Br J Surg 1966; 53: 174.
21. Anderson MA, Fisher L, Jain R, et al. ASGE standards of practice committee. Complications of ERCP. Gastrointest Endosc 2012; 75: 467-473.
22. Urbano Fl. Signs of hypocalcemia: Chovstek and Trousseau’s. Hosp Physician 2000; 36: 43-45.
23. Hayes MA. A disturbance in calcium metabolism leading to tetany occurring early in acute pancreatitis. Ann Surg 1955; 142: 346-350.
24. Hernandez IA, Powers SR, Frawley TF. The role of the parathyroid glands in calcium and magnesium metabolism in acute hemorrhagic pancreatitis. Surgery 1961; 50: 113-118.
25. Bhattacharya SK, Luther RW, Pate JW, et al. Soft tissue calcium and magnesium concentration in the dog: calcium accumulation, a mechanism for hypocalcemia in acute pancreatitis. J Lab Clin Med 1985; 105: 122-127.
26. Ranson JH, Rifkind KM, Roses DF, Fink SD, Eng K, Spencer FC. Prognostic signs and the role of operative management in acute pancreatitis. Surg Gynecol Obstet 1974; 139: 69-81.
27. Jacobs ML, Duggett WM, Civetta JM, et al. Acute pancreatitis: analysis of factors influencing survival. Ann Surg 1977; 185: 43-51.
28. Durr GHK. In the exocrine pancreas, Howat HT, Sarles H. (eds.) 1979 p. 352, Saunders: London.
29. Jones PA. Survival after profound hypocalcaemia with tetany complicating severe haemorrhagic acute pancreatitis. Postgrad Med J 1985; 61: 43-45.
