A young lady with post-partum jaundice and right upper quadrant lump abdomen: an unusual etiology

Amitava Goswamia, Narendra Bhargavaa, Sunil Dadhicha, Kirti Rana Chaturvedib

Dr Sampurnanand Medical College, Jodhpur, India



Abstract

Intraductal papillary mucinious neoplasm-biliary type is the biliary counterpart of intraductal papillary mucinious neoplasm-pancreatic type. We report a rare case of intraductal papillary mucinous tumor arising from extrahepatic biliary system. The diagnosis was established on histopathological analysis following endoscopic retrograde cholangiopancreatography-guided biopsy. Isolated papillary adenoma of the bile duct is extremely rare, and in this unusual case the patient was a 22-year-old young lady who had delivered a healthy infant 6 weeks previously.

Keywords IPMN-B, ERCP, CECT

Ann Gastroenterol 2014; 27 (1): 82-84





Departments of aGastroenterology (Amitava Goswami, Narendra Bhargava, Sunil Dadhich); bRadiology (Kirti Rana Chaturvedi),
Dr Sampurnanand Medical College, Jodhpur, India

Conflict of Interest: None

Correspondence to: Amitava Goswami, Department of Gastroenterology, S.N.M.C. Jodhpur 352001, Rajasthan, India,
Tel.: 087699 47345, e-mail: amitavagoswami77@gmail.com

Received 16 May 2013; accepted 6 August 2013





Introduction

Contrary to well-documented flat type neoplasms, biliary papillomatosis or intraductal papillary mucinous neoplasm-billiary type (IPMN-B) is relatively rare and a recently diagnosed disease entity. Papillary neoplasm of the bile ducts are rare, pathology is characterized by diffuse papillary proliferation of the bile duct epithelial cells. They account for 3-5% of cholangiocarcinomas and can arise from any portion of the intra or extra hepatic bile ducts [1]. Biliary intraductal neoplasms are proposed to be of two types: flat and papillary [2,3]. Papillary cholangiocarcinoma is believed to have a better clinical course than non-papillary cholangiocarcinoma, just as malignant intraductal papillary mucinous neoplasm of the pancreas (IPMN-P) has a better prognosis than pancreatic ductal adenocarcinoma.

Case report

A 22-year-old young lady was referred to the Gastroenterology department by her local physician with 4 weeks history of yellowish discoloration of urine and sclera. Lumpy upper abdomen and significant loss of weight (approx. 5 kg) were present for 3 weeks. There were no prodromal symptoms and she denied any history of pruritus or passage of light colored stool. Her drug and family histories were unremarkable.

She had normal full-term pregnancy with transvaginal delivery of a healthy infant 6 weeks previously. There were no complications during pregnancy and no evidence of jaundice or cholestasis during pregnancy. Patient had a sensation of a lump in the right upper hypochondrium which had been gradually increasing in size over the past 3 weeks. It was associated with colicky pain lasting for 15-20 min and then subsided gradually. The patient also had intermittent spikes of fever with chills for one week.

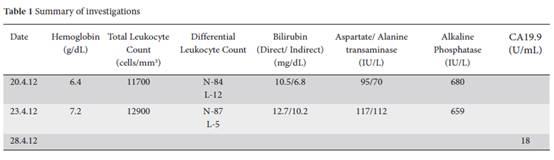

On general examination there was pallor, jaundice but no lymphadenopathy. Tenderness was present in the right hypochondrium and a globular bulge was felt 4 cm below the right costal margin. Hepatomegaly was present with left lobe enlargement more than the right lobe; margins were sharp with firm consistency. Routine investigations confirmed normocytic normochromic anemia (hemoglobin 6.4 g/dL) with conjugated hyperbilirubinemia (10.5/6.8 mg/dL) and deranged liver function test (Table 1). Ultrasonography was done showing grossly dilated common bile duct with large filling defect throughout. Gross dilatation of intrahepatic biliary radicals and common hepatic ducts were seen.







Contrast-enhanced computed tomography (CECT) study of abdomen was done showing grossly dilated gallbladder with moderate to gross dilatation of intrahepatic biliary radicals and common bile duct (Fig. 1). A large polypoidal intraluminal multifocal enhancing lesion filling almost the entire common bile duct, cystic duct was also seen multifocally in the gallbladder. Multiple small hypodense lesions seen in both lobes showing peripheral rim enhancement clustered around central intra hepatic biliary radical dilatations were suggestive of cholangitic abscess.







Endoscopic retrograde cholangiopancreatography was performed under conscious sedation and after easy cannulation grossly dilated common bile duct was noted with obstruction and shouldering at mid common bile duct on air cholangiogram. A biopsy was taken from the mass lesion and sent for histopathological examination. Two plastic biliary stents 10 Fr x 10 cm were placed across the mass. Choledochoscopic image was taken by ultrathin neonatal endoscope (Fig. 2).







Histopathology analysis of the soft tissue revealed multiple papillae lined by complex epithelial proliferation with severe dysplastic changes. Early invasion of stroma was seen with neutrophillic infiltration and dilatation of blood vessels (Fig. 3A, B). These findings were in consistence with intraductal papilloma with severe dysplasia.







Discussion

Two types of biliary intraductal neoplasms preceding invasive cholangiocarcinoma have been identified so far; a flat type neoplastic lesion called BilIN, which develops into non-papillary cholangiocarcinoma, and a papillary type called IPMN-B with malignancy potential. IPMN-B comprises a histological spectrum that ranges from benign to malignant adenoma, borderline tumor, carcinoma in situ, and invasive carcinoma [4]. The current WHO classification and some authors recognize biliary papillomatosis, as well as BilIN, or biliary epithelial dysplasia, as precursor lesion of cholangiocarcinoma [5-8]. The pathogenesis of the disease is not yet known, but has been thought to be related to chronic billiary ductal inflammation from pancreatic juice reflux resulting in excessive proliferation of the bile duct epithelium followed by dysplasia-carcinoma sequence [7].

Unlike traditional ductal adenocarcinoma, papillary tumors are low-grade malignancy. They are usually limited to the mucosa or spread along a mucosal membrane, although they can invade the ductal wall in the later stage. Once papillary cholangiocarcinoma shows stromal invasiveness, its prognosis is as poor as non-papillary cholangiocarcinoma. Most papillary tumors are peripheral in location and are nodular or papillary in shape. IPMN-B involves the extrahepatic ducts in 58%, both extra and intrahepatic ducts in 33% and intrahepatic ducts alone in 9% cases [9].

IPMNs are classified in 4 subtypes on the basis of histology and mucin expression, as recently published in a consensus study [10]. These are: 1) the gastric type, composed of columnar epithelial cells resembling cells of the gastric foveolae (MUC1-, MUC2-, MUC5+);  2) the intestinal type, characterized by  tall columnar cells and some goblet cells as found in intestinal adenoma or adenocarcinoma (MUC1-, MUC2+, MUC5+); 3) the pancreaticobiliary type, composed of columnar cells with moderate amphophilic cytoplasm and enlarged hyperchromatic nuclei resembling biliary or pancreatic epithelium (MUC1+, MUC2-, MUC5+); and 4) the oncocytic type, characterized by cells with abundant eosinophilic cytoplasm and large round nuclei (MUC1-/+, MUC2-, MUC5+).

Biliary papillomatos commonly affects adults older than 60 years, with a Male: Female ratio of 2:1 [11], but we report a case of IPMN-B in a young 22-year-old lady during the post-partum period. There is no literature available about a possible link between pregnancy hormones and IPMN-B. Cytological examination by epithelial brushing and biopsies during ERCP is an effective preoperative procedure for the diagnosis of papillary tumor of the bile duct.

In conclusion, intraductal papillary tumor of the bile duct runs a benign course and will benefit from early surgical intervention. When massive localised dilatation of the intrahepatic duct is seen on CT without an obvious cause, papillary mucinous tumor of the bile duct should be considered. ERCP is often diagnostic when a copious amount of mucus is present. Furthermore, for establishing the concept of IPMN-B, more continual reports and studies are warranted.

References

1.    Nakajima T, Kondo Y, Miyazaki M, Okui K. A histopathologic study of 102 cases of intrahepatic cholangiocarcinoma: histologic classification and modes of spreading. Hum Pathol 1988;19:1228-1234.

2.  Zen Y, Sasaki M, Fujii T, et al. Different expression patterns of mucin core proteins and cytokeratins during intrahepatic cholangiocarcinogenesis from biliary intraepithelial neoplasia and intraductal papillary neoplasm of the bile duct-an immunohistochemical study of 110 cases of hepatolithiasis. J Hepatol 2006;44:350-358.

3.    Kloppel G, Kosmahl M. Is the intraductal papillary mucinous neoplasia of the biliary tract a counterpart of pancreatic papillary mucinous neoplasm? J Hepatol 2006;44:249-250.

4.    Martin RC, Klimstra DS, Schwartz L, Yilmaz A, Blumgart LH, Jarnagin W. Hepatic intraductaloncocytic papillary carcinoma. Cancer 2002;95:2180-2187.

5.    Jiang L, Yan LN, Jiang LS, et al. Biliary papillomatosis: analysis of 18 cases. Chin Med J (Engl) 2008;121:2610-2612.

6.    Shimonishi T, Sasaki M, Nakanuma Y. Precancerous lesions of intrahepatic cholangiocarcinoma. J Hepatobiliary Pancreat Surg 2000;7:542-550.

7.    Lee SS, Kim MH, Lee SK, et al. Clinicopathologic review of 58 patients with biliary papillomatosis. Cancer 2004;100:783-793.

8.    Vassiliou I, Kairi-Vassilatou E, Marinis A, Theodosopoulos T, Arkadopoulos N, Smyrniotis V. Malignant potential of intrahepatic biliary papillomatosis: a case report and review of the literature. World J Surg Oncol 2006;4:71.

9.    Chung DJ, Lee SK, Ha HK, Kim PN, Lee MG. Biliary papillomatosis: comparision of MR Cholangiography with endoscopic retrograde cholangiography. J Comput Assist Tomogr 2002;26:968-974.

10. Furukawa T, Kloppel G, Volkan AN, et al. Classification of types of intraductal papillary-mucinous neoplasm of the pancreas: a consensus study. Virchows Arch 2005;447:794-799.

11. Yeung YP, AhChong K, Chung CK, Chun AYW. Biliary papillomatosis: report of seven cases and review of the English literature. J Hepatobiliary Pancreat Surg 2003;10:390-395.
